X series
X series
Pixel pitch：0.93/1.25/1.56/1.87mm
Module size：300x168.75mm

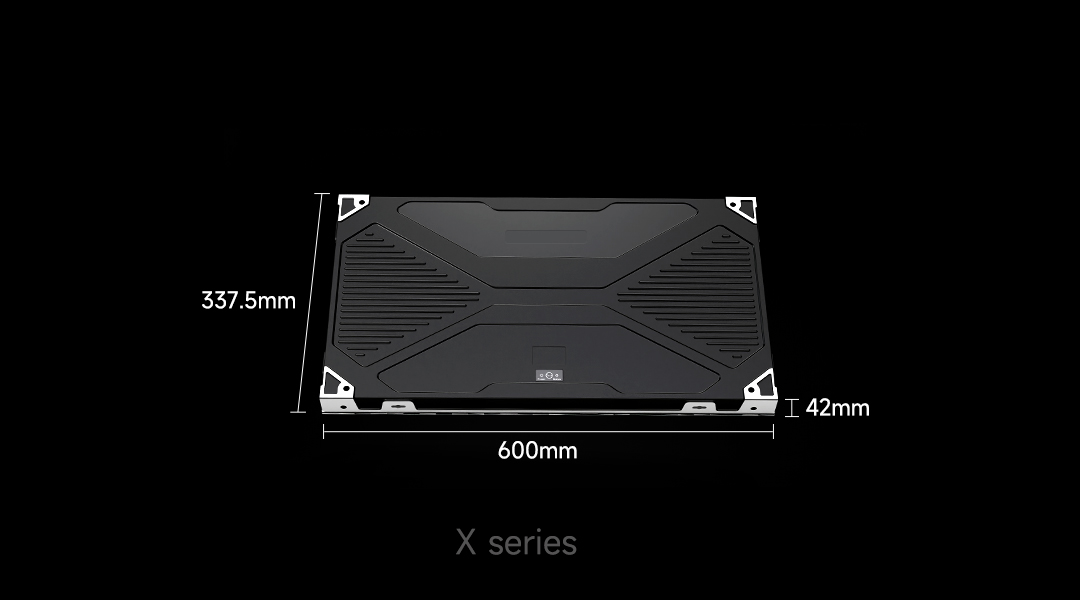

Cabinet size：600x337.5x42mm
Brightness：600~800nit
Refresh Frequency：≥3840HZ
Main feature

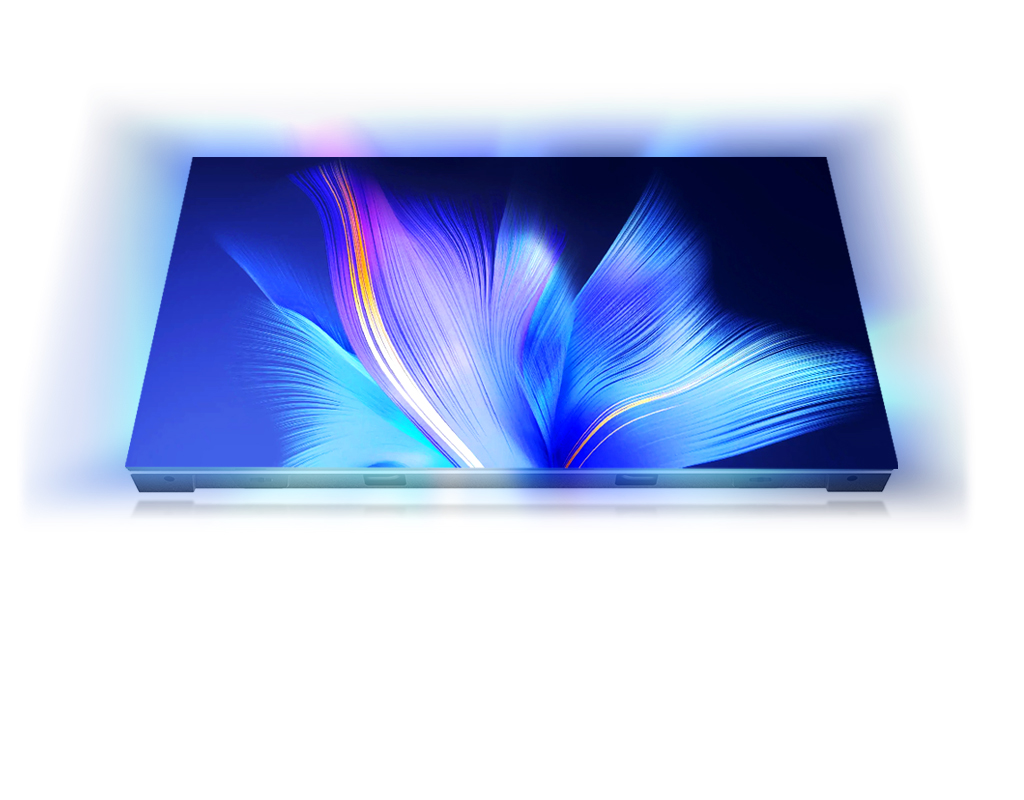

16:9 Golden ratio
8K standard resolution display
Display unit 16:9 golden ratio design, support point-to-point 2K, 4K, 8K standard resolution display;
Single light and chrominance correction technology, excellent consistency;

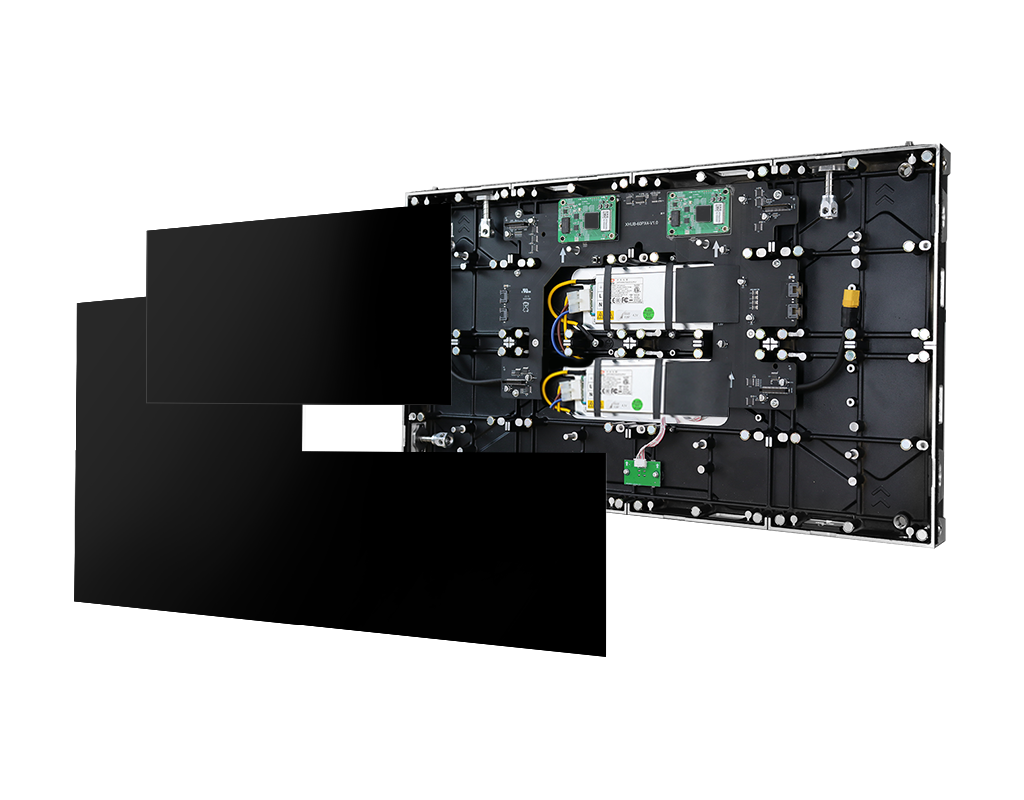

Dual power supply dual signal
Redundant backup
With dual power supply, dual signal redundancy backup technology, the system runs stably and reliably;

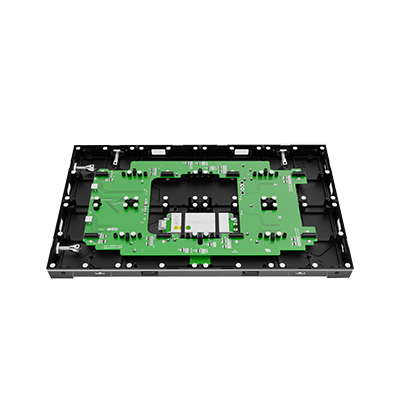

Private mold design, complete pre-installation, pre-maintenance, hard link, compatible with COB;
Concealed cabling between boxes, no external connection required, safer and cleaner overall;

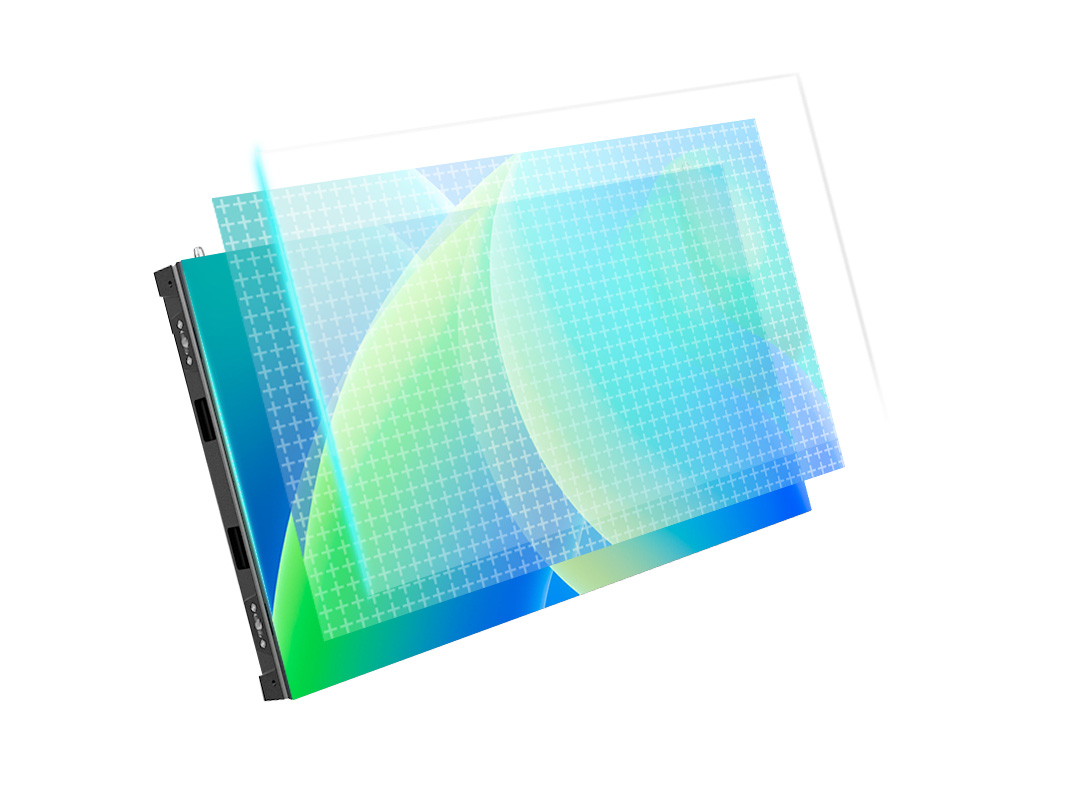

Single brightness
Chrominance correction technology
Display unit 16:9 golden ratio design, support point-to-point 2K, 4K, 8K standard resolution display;
Single light and chrominance correction technology, excellent consistency;
Value
- Title
- LED type
- Pixel pitch
- Module resolution(Pixel)
- Module size(mm)
- Cabinet resolution(Pixel)
- Cabinet size(mm)
- Cabinet weight
- method of Installation
- Pixel Density(dot/m
- Brightness(Nits）
- H view/V view
- Highest Contrast Ratio
- Signal color processing bits
- Scan method
- Refresh Frequency
- Frame change frequency
- Color temperature of screen
- perating Voltage
- Peak power
- Average power
- Continuous working time
- Average trouble-free operating
- LED Life
- Operating ambient temperature
- Operating environment humidity
- X0.9
- IMD 4 in 1
- 0.9375mm
- 320×180
- 300×168.75
- 640×360
- 600×337.5×42
- 6Kg/Cabinet
- Hoisting/mounting/wall hanging
- 1137777
- 600-800 nit adjustable
- H140°/V140°
- ≥5000：1
- ≥14bit
- 60
- ≥3840
- 60Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 270W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
- X1.2
- SMD1010
- 1.25mm
- 240×135
- 300×168.75
- 480×270
- 600×337.5×42
- 6Kg/Cabinet
- Hoisting/mounting/wall hanging
- 640000
- 600-800 nit adjustable
- H140°/V140°
- ≥5000：1
- ≥14bit
- 45
- ≥3840
- 60Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 270W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
- X1.5
- SMD1212
- 1.5625mm
- 192×108
- 300×168.75
- 384×216
- 600×337.5×42
- 6Kg/Cabinet
- Hoisting/mounting/wall hanging
- 409600
- 600-800 nit adjustable
- H140°/V140°
- ≥5000：1
- ≥14bit
- 54
- ≥3840
- 60Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 270W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
- X1.8
- SMD1515
- 1.875mm
- 160×90
- 300×168.75
- 320×180
- 600×337.5×42
- 6Kg/Cabinet
- Hoisting/mounting/wall hanging
- 284444
- 600-800 nit adjustable
- H140°/V140°
- ≥5000：1
- ≥14bit
- 45
- ≥3840
- 60Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 270W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
