Q series
Q series
Pixel pitch：1.9/2.3/2.6mm
Module size：250x250mm

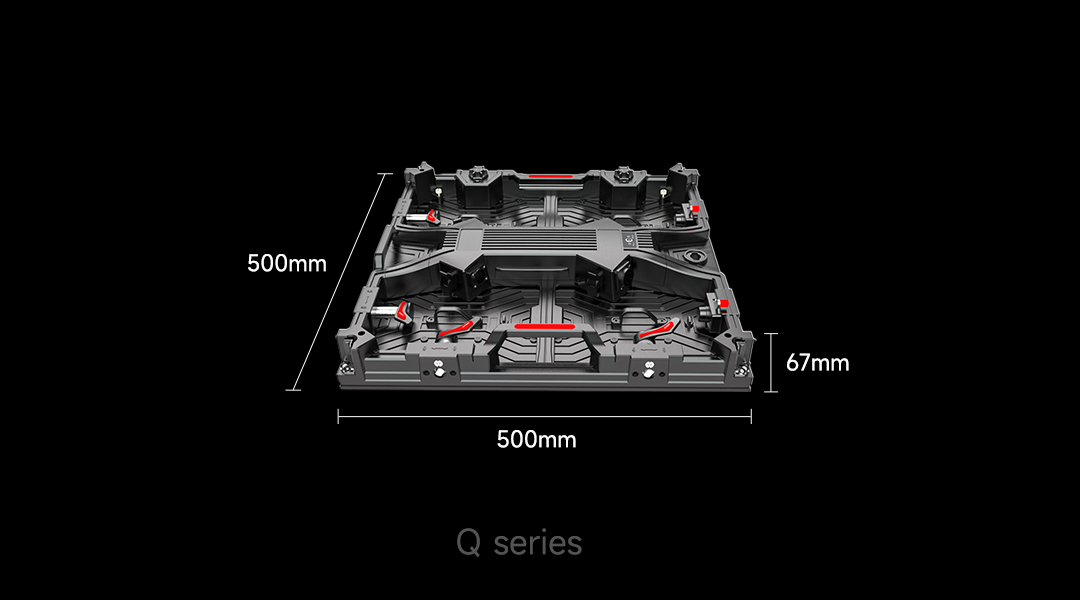

Cabinet size：500x500x67mm
Brightness：1200~1500nit
Refresh Frequency：7680HZ
Main feature

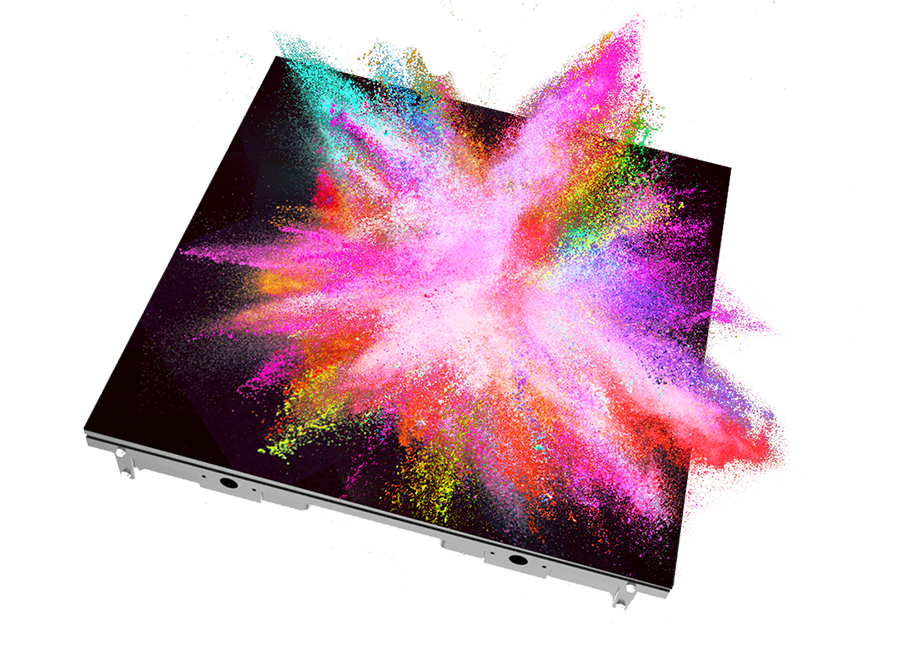

Fine & delicate picture quality
Realistic & beautiful colors
High brightness: 2000nit;

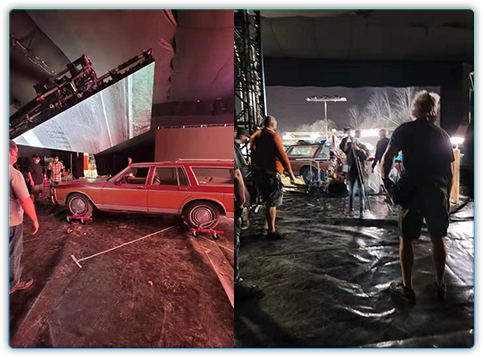

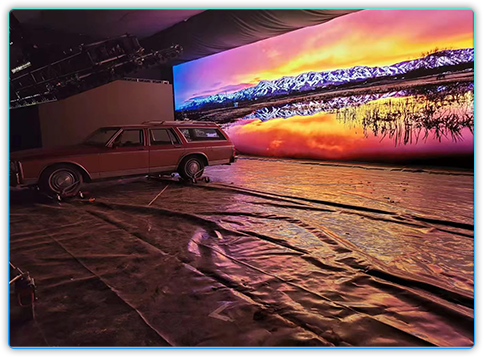

High gray scale: 16Bt high-quality display effect, to meet the application of XR scenarios;
Wide color gamut: >98% DC-P3, delicate and realistic picture quality, showing the colorful to the real world;
High refresh and high frame rate: Support high refresh 7680HZ, high frame rate 240HZ;
Support HDR function: delicate and realistic picture quality, excellent display effect

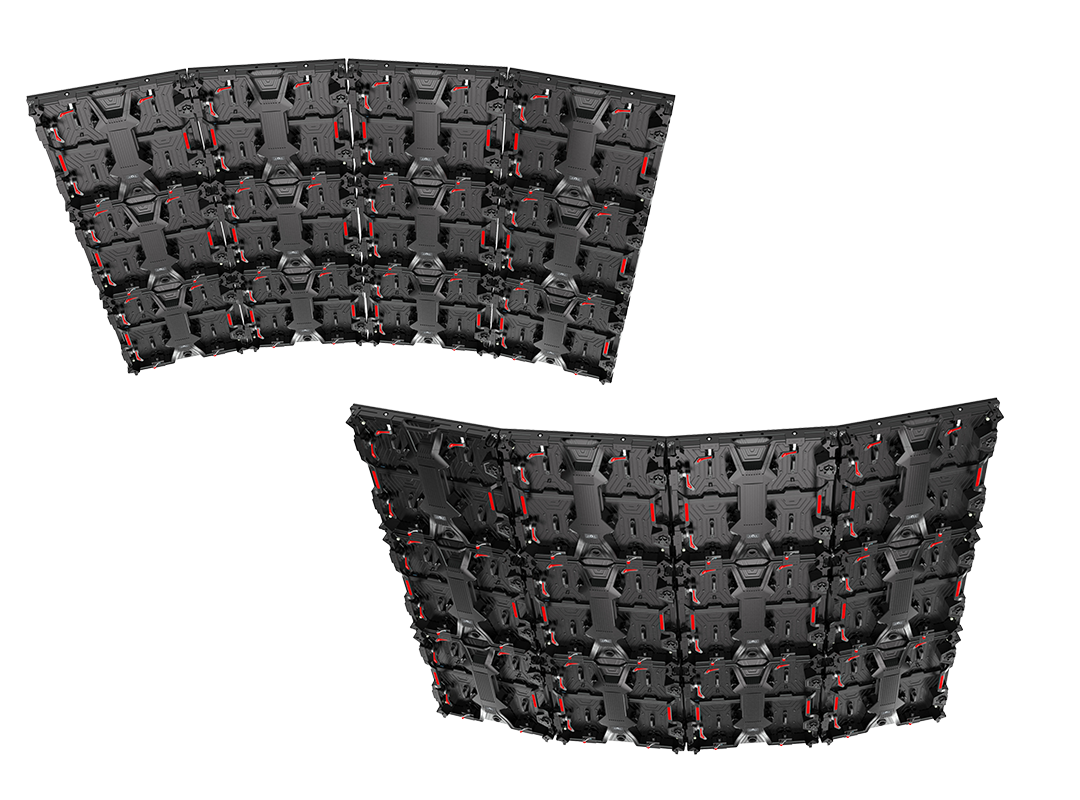

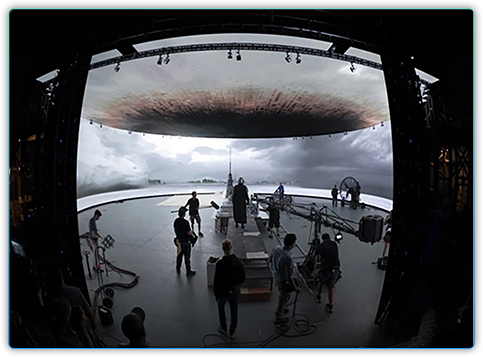

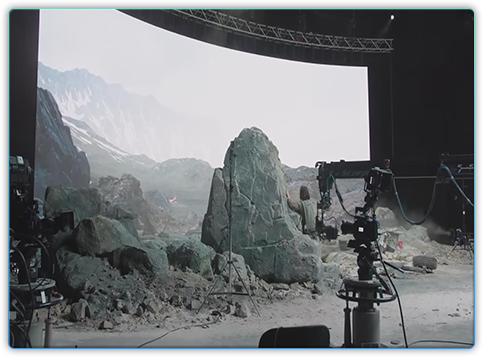

3D splicing curved lock
maxi allowable value of inner & outer arcs is± 12 degrees
Invisible handle: "hidden" in the box, stylish and simple
Three-dimensional splicing: box design arc lock, support inner arc, outer arc Angle adjustment
Fast loading and unloading: private mold fast lock, faster installation
Seat hoisting Optional: humanized design, both can be mounted, but also can be lifted

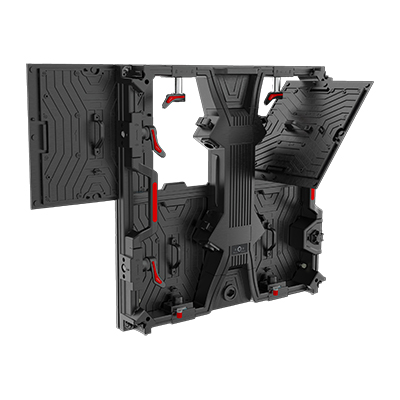

Quick maintenance

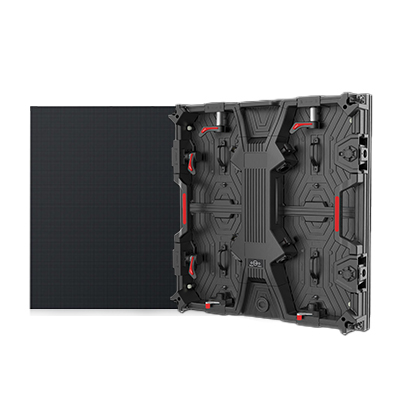

Support pre - and post maintenance
Fast loading and unloading: private mold fast lock, faster installation
Floor protection: four corners anti-collision design, better protect the lamp beads

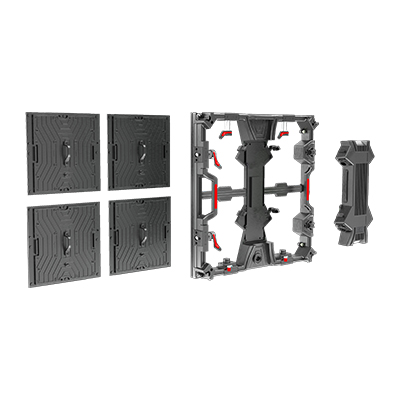

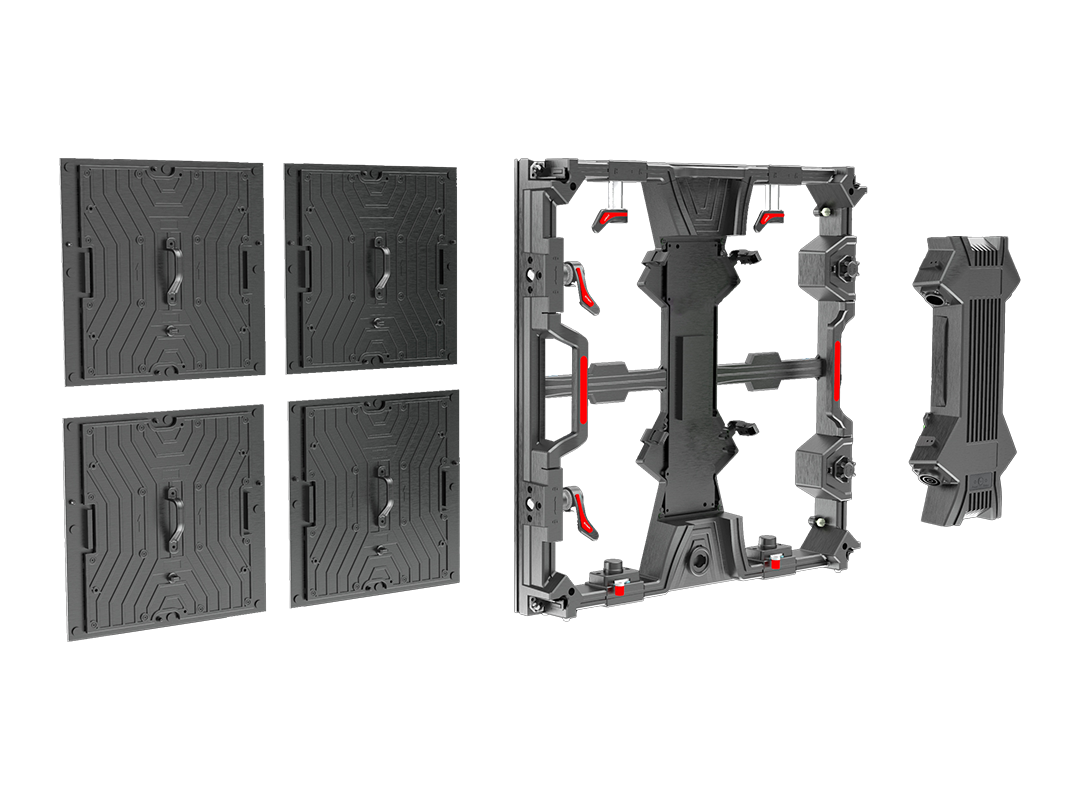

Easy maintenance: Both modules and power boxes support front and rear maintenance
Value
- Title
- LED type
- Pixel pitch
- Module resolution(Pixel)
- Module size(mm)
- Cabinet resolution(Pixel)
- Cabinet size(mm)
- Cabinet weight
- method of Installation
- Pixel Density(dot/m
- Brightness(Nits）
- H view/V view
- Highest Contrast Ratio
- Signal color processing bits
- Scan method
- Refresh Frequency
- Frame change frequency
- Color temperature of screen
- perating Voltage
- Peak power
- Average power
- Continuous working time
- Average trouble-free operating
- LED Life
- Operating ambient temperature
- Operating environment humidity
- Q1.9
- SMD1212
- 1.953mm
- 128×128
- 250×250
- 256×256
- 500×500×67
- 8.8Kg/Cabinet
- Hoisting/mounting/wall hanging
- 262144
- 1200-1500 nit adjustable
- H160°/V160°
- ≥5000：1
- 15bit
- 8
- ≥7680
- 23.5-240Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 267W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
- Q2.3
- SMD1515
- 2.315mm
- 108x108
- 250×250
- 216×216
- 500×500×67
- 8.8Kg/Cabinet
- Hoisting/mounting/wall hanging
- 186624
- 1200-2000 nit adjustable
- H160°/V160°
- ≥5000：1
- 16bit
- 9
- ≥7680
- 23.5-240Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 267W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
- Q2.6
- SMD1515
- 2.604mm
- 96×96
- 250×250
- 192×192
- 500×500×67
- 8.8Kg/Cabinet
- Hoisting/mounting/wall hanging
- 147456
- 1200-2000 nit adjustable
- H160°/V160°
- ≥5000：1
- 16bit
- 8
- ≥7680
- 23.5-240Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 800W/m²
- 267W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
