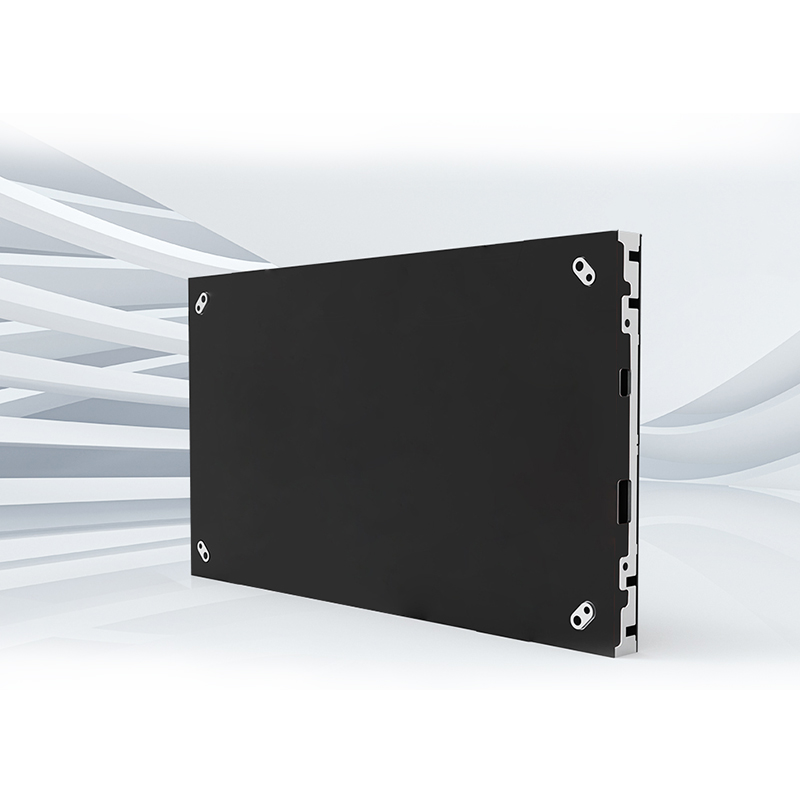

XG SERIES
XG SERIES

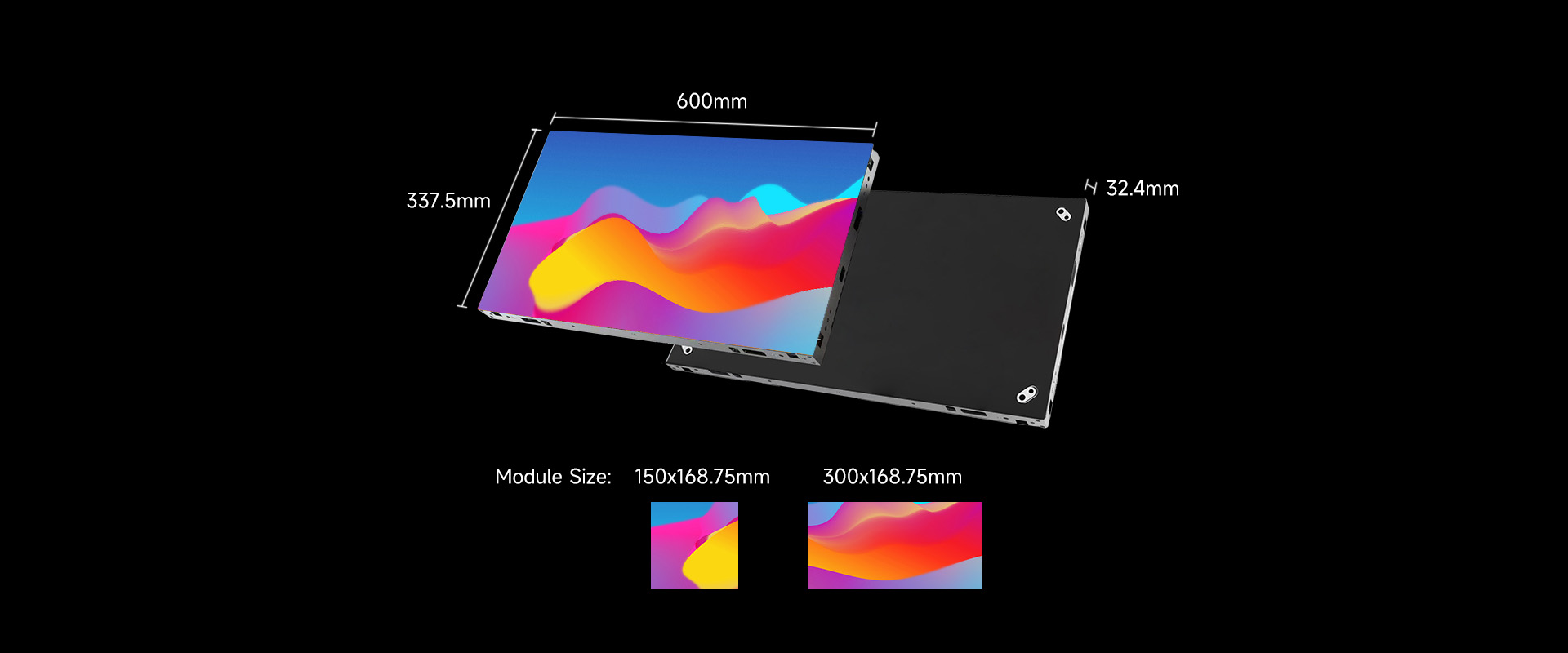

Pixel pitch：0.93/1.25/1.56mm
Module size：150x168.75mm
300x168.75mm
Cabinet size：600x337.5x32.4mm
Brightness：600nit
Refresh Frequency：≥3840HZ
Main feature
Semiconductor
Process
Process
Micro LED integrated
architecture
architecture
Cold screen
Anti-Glare
Accurate color
expression
expression
Ultra high
ink consistency
ink consistency

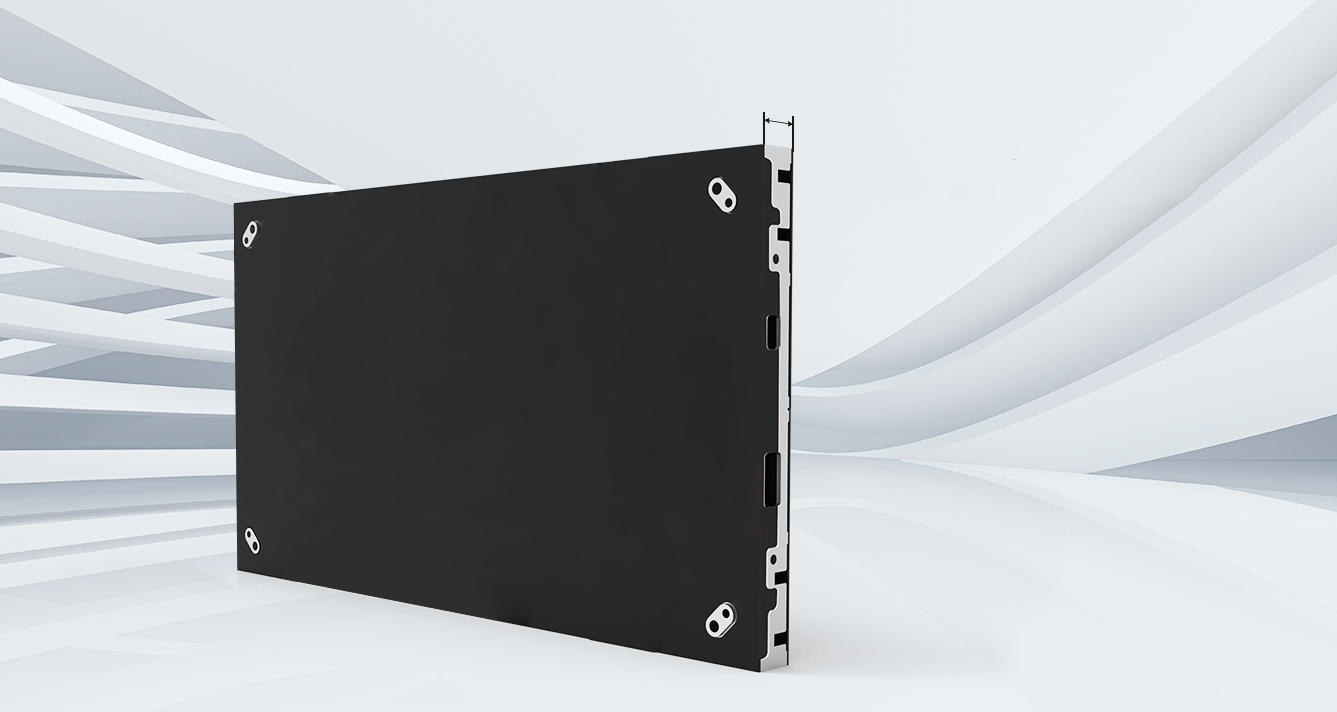

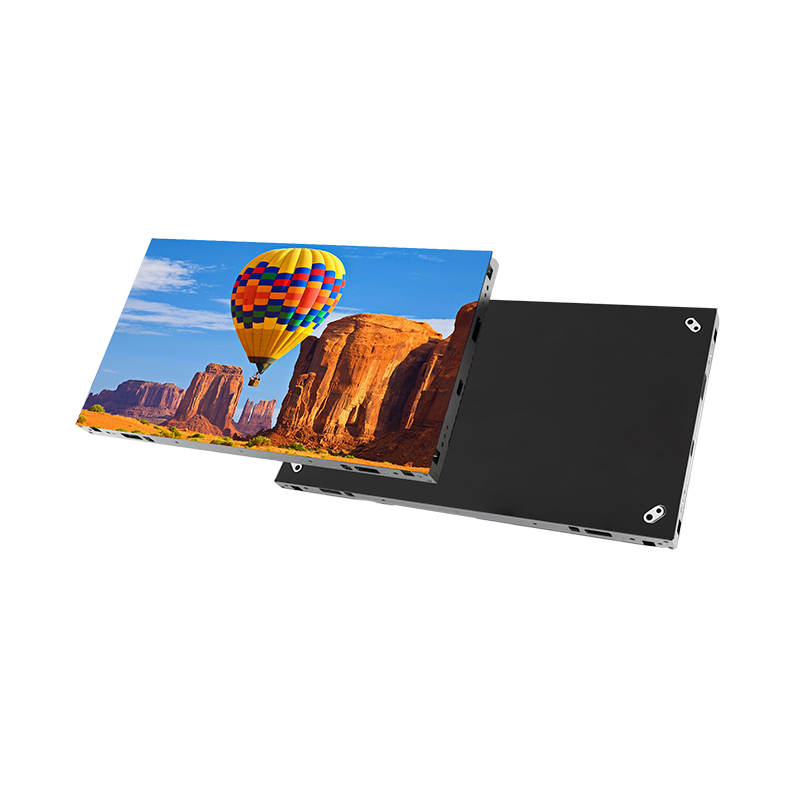

Ultra-light and ultra-thin
Made of die-cast aluminum, it significantly reduces weight and is easy to handle and install. Slim and light in shape, it saves space and has lower transportation costs.

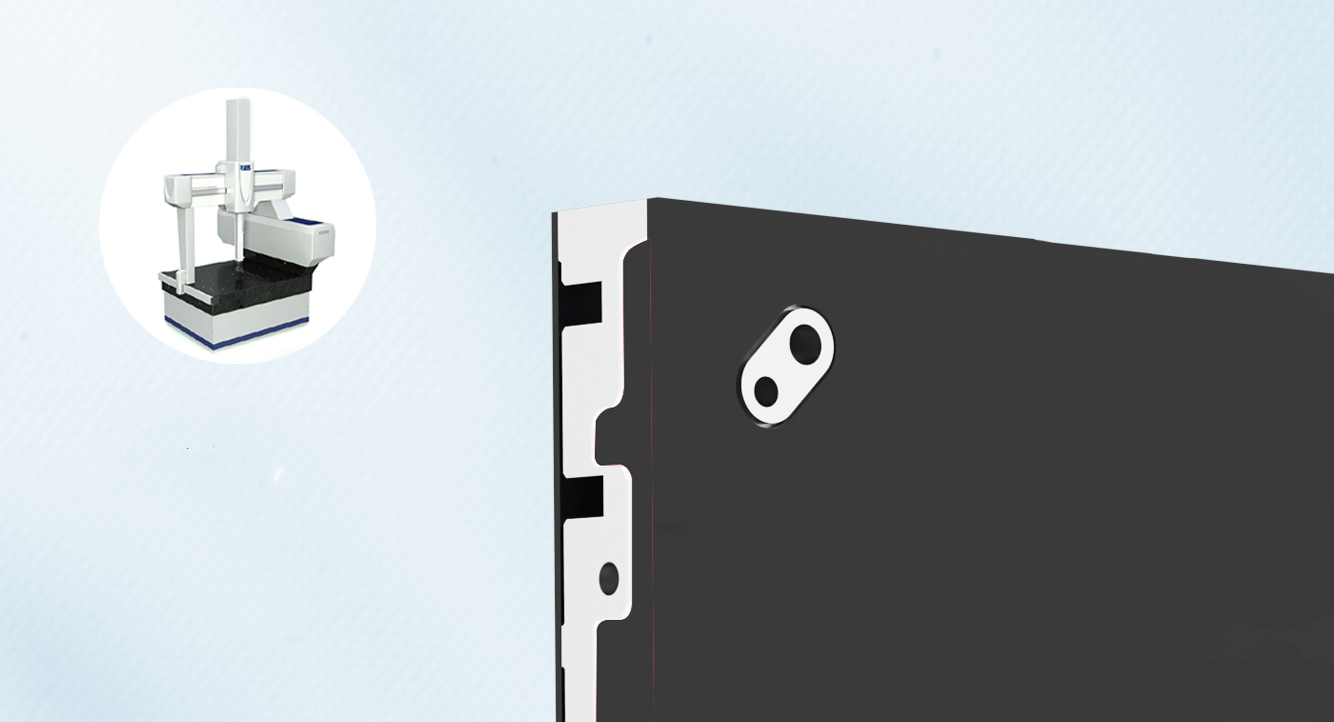

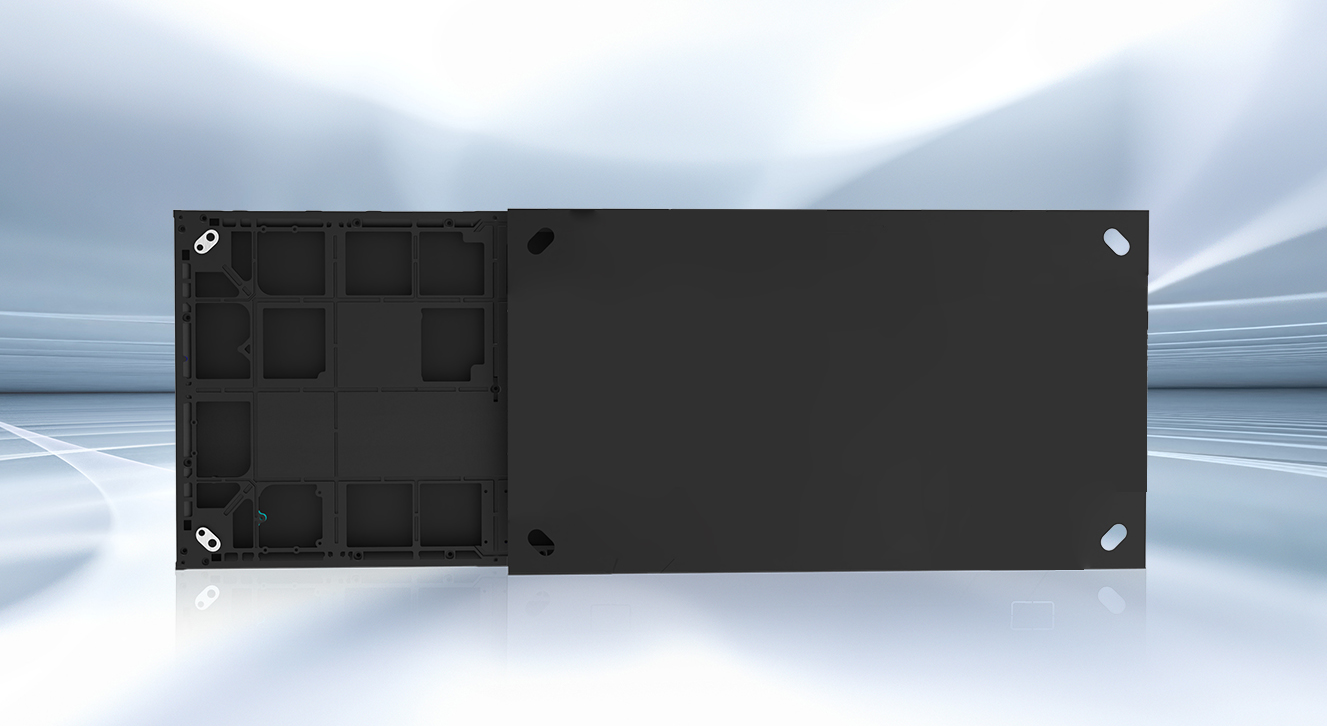

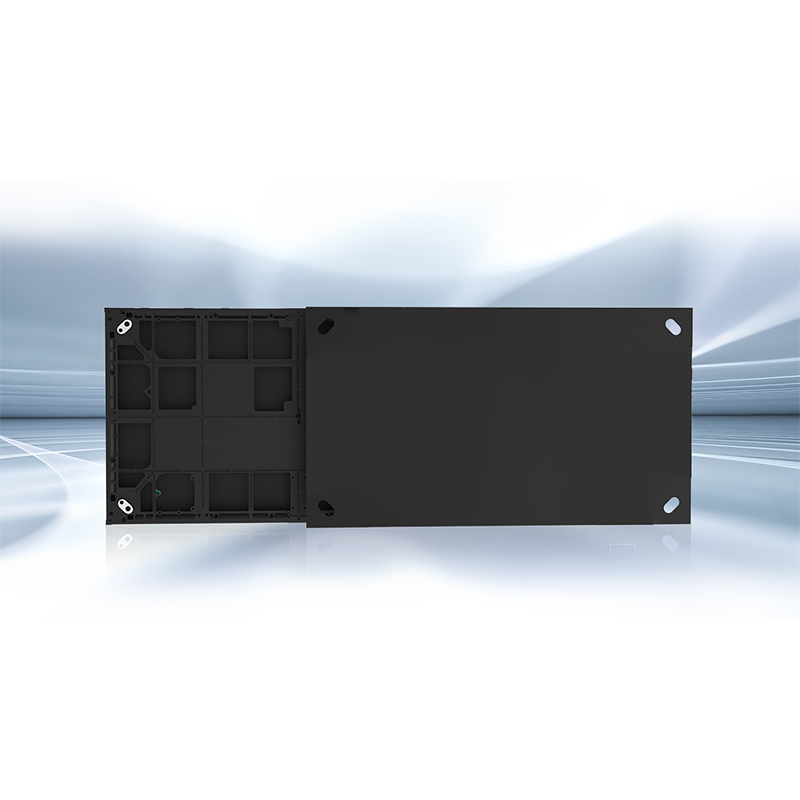

Aviation grade aluminum die-casting
Aviation grade aluminum die-casting process, selecting high-quality aluminum with high strength and lightweight weight, and high screen flatness
Low Consumption Cold Screen
XGL Semiconductor also adopts a common cathode architec-
ture,which can accurately distribute voltage and current to red
and blue light chips,thereby significantly reducing power
consumption and reducing on-resistance,thereby bringing
about a lower screen temperature.
Parameters
- Title
- led Types
- Module resolution
- Module size
- Cabinet size
- Cabinet resolution
- Cabinet weight
- Installation method
- Point density (dot/m ²)
- Brightness (Nits)
- Viewing Angle(H/V)
- Maximum contrast
- Signal color processing bit
- Scanning
- Refresh rate
- Frame change frequency
- Color temperature
- Working voltage
- Peak power
- Average power
- Continuous working time
- 0.93
- COBIntegrated lamp drive
- 160x180
- 150x168.75
- 640x360
- 600*337.5*32.4mm
- 4.3Kg/Cabinet
- Hoisting/mounting/wall hanging
- 1137422
- 600 nit
- H160/W160°
- ≥10000:1
- 13bit
- 54
- 3840
- 60Hz
- 3000-18000 K Tunab1e
- AC:100V-240W(50-60Hz)
- 350m/m²
- 160W/m²
- ≥7x24hrs
- 1.25
- COBIntegrated lamp drive
- 240x135
- 150x168.75
- 480x270
- 600*337.5*32.4mm
- 4.3Kg/Cabinet
- Hoisting/mounting/wall hanging
- 640000
- 600 nit
- H160/W160°
- ≥10000:1
- 13bit
- 60
- 3840
- 60Hz
- 3000-18000 K Tunab1e
- AC:100V-240W(50-60Hz)
- 350m/m²
- 160W/m²
- ≥7x24hrs
- 1.56
- COBIntegrated lamp drive
- 192x108
- 300x168.75
- 480x270
- 600*337.5*32.4mm
- 4.3Kg/Cabinet
- Hoisting/mounting/wall hanging
- 409600
- 600 nit
- H160/W160°
- ≥10000:1
- 13bit
- 54
- ≥3840
- 60Hz
- 3000-18000 K Tunab1e
- AC:100V-240W(50-60Hz)
- 330m/m²
- 170W/m²
- ≥7x24hrs
