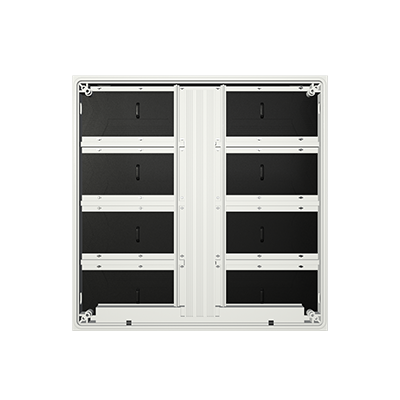

F series
F series
Pixel pitch：3.9/6.67mm
Module size：500x250mm;480x320mm

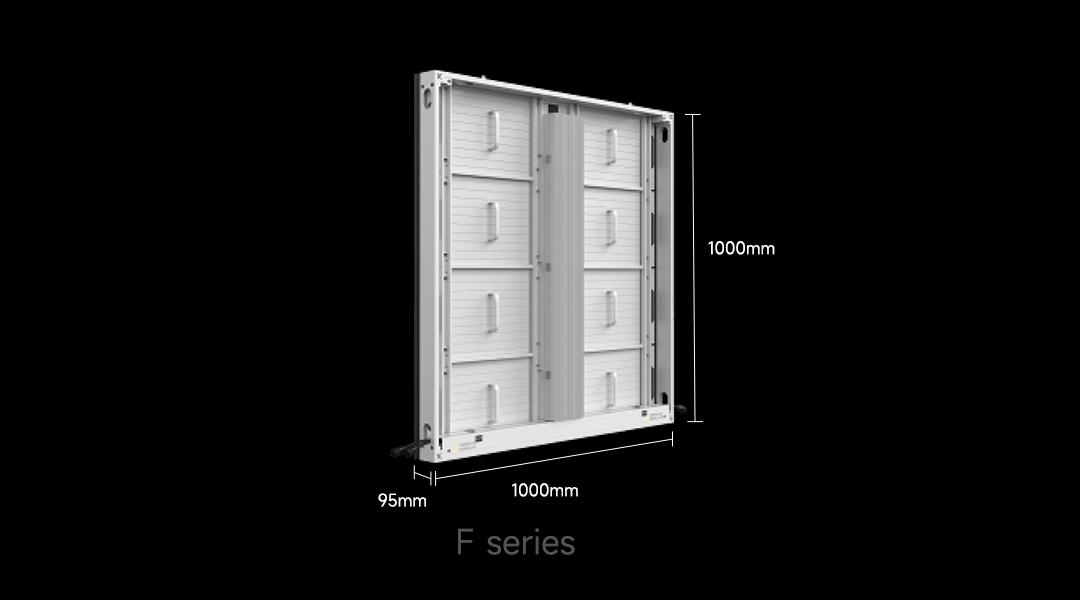

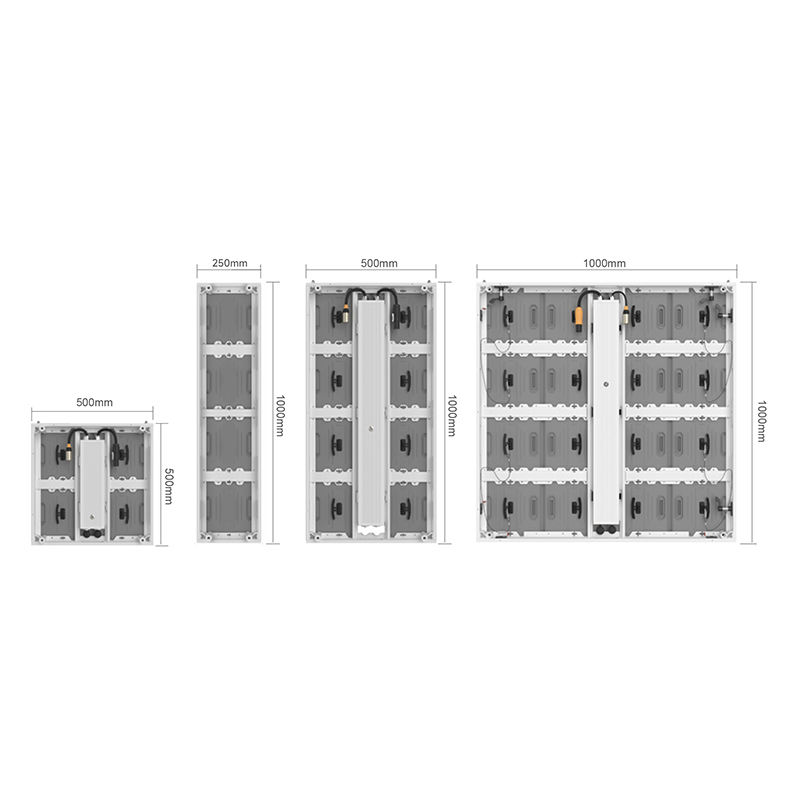

Cabinet size：1000x1000x95mm;960x960x95mm
Brightness：5500~6000nit
Refresh Frequency：3840HZ
Main Features
Unique energy-saving technology
Highly integrated design improves product stability

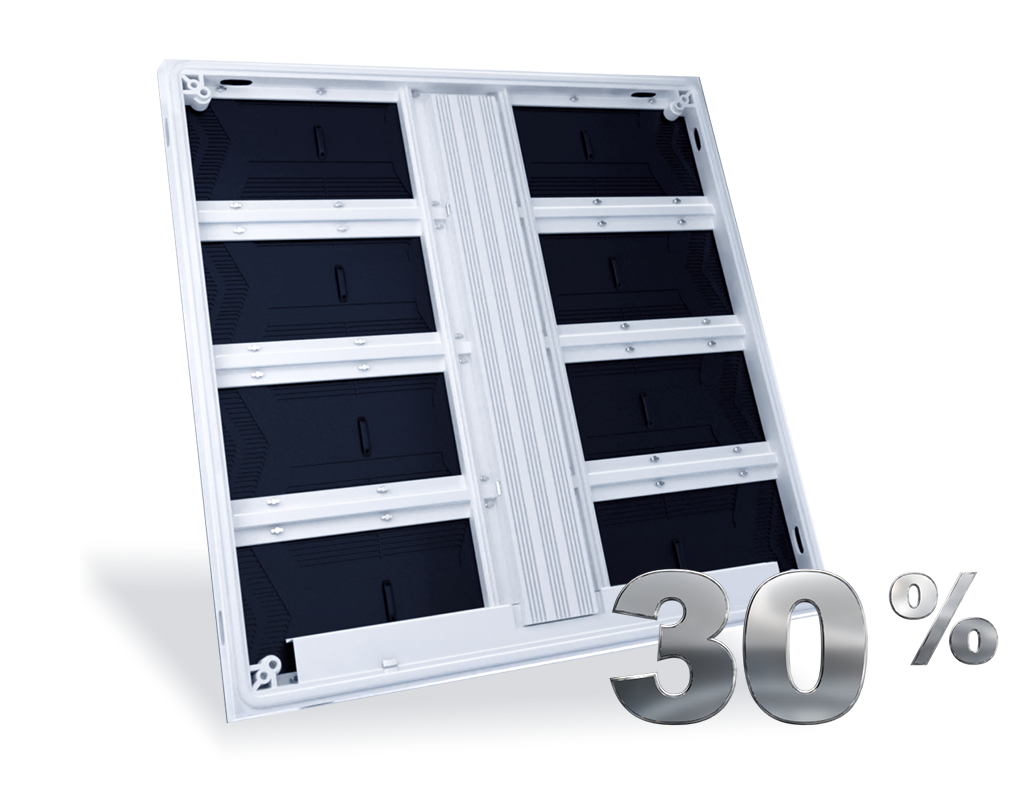

Unique energy-saving technology reduces power consumption by 20-35% compared to traditional outdoor screens
Protection rating IP66

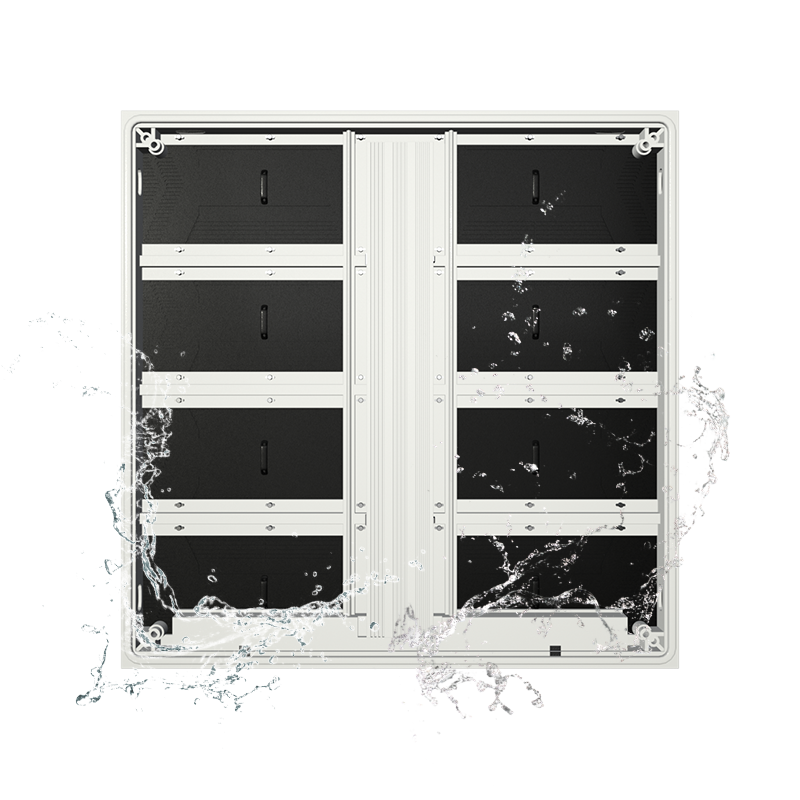

Fully sealed, triple-proof design
Hidden wiring, minimalist design, attractive and durable; fully sealed waterproof module power supply design; IP66 waterproof, dustproof, and corrosion resistant;
Ultra-lightweight

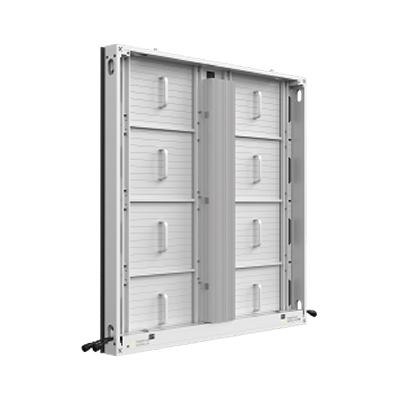

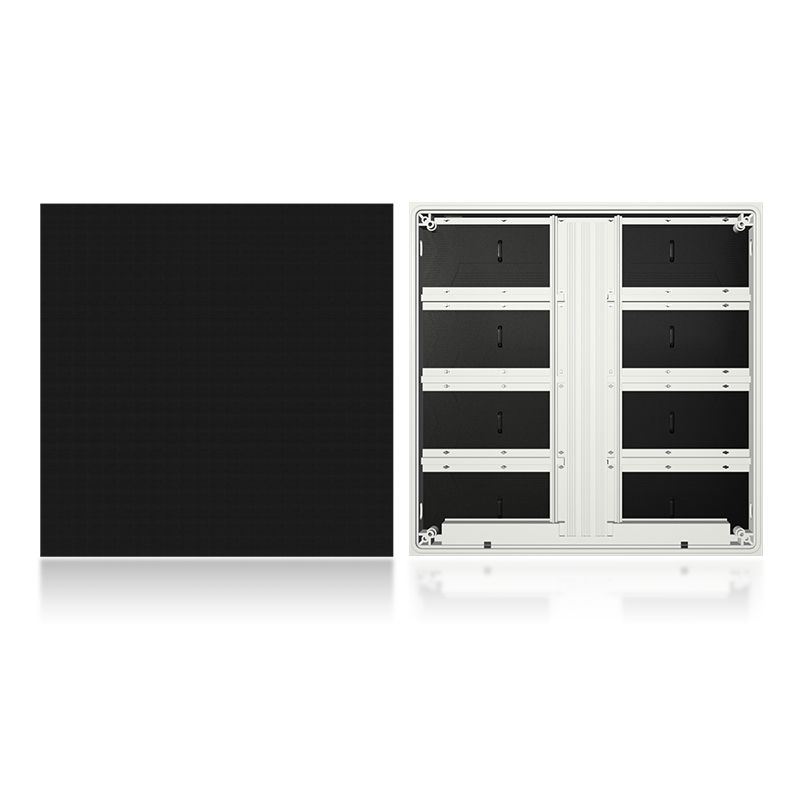

Supports front and rear installation & maintenance
Ultra-lightweight, supports front and rear installation & front and rear maintenance, front and rear protection rating 1P65
parameters
- Title
-
Pixel pitch
LED type
Module resolution
Scanning method
Number of pixels per module
Module size
Cabinet size
Cabinet resolution
Pixel density
Viewing distance
Brightness
Protection rating
Refresh rate
Signal colour processing bit depth
Horizontal viewing angle/vertical viewing angle
Peak power
Average power
Operating voltage
Operating temperature
Operating humidity
Cabinet weight
Operating system
- F3.9
- 3.906mm
- SMD1921
- 128×64
- 1/16 or 1/8
- 8,192
- 500×250
- 1000×1000×95
- 256 x 256
- 65,536dots/m²
- ≥3.9m
- 4500~9000nits
- IP66
- 3,840Hz
- 16bits
- H110°/V:110°
- 560W/m²/600W/m²
- 160W/m²/170W/m²
- AC110V~AC220V 50Hz/60Hz
- -20℃~50℃
- 10%~90%
- 25kg
- Windows (Win7,Win10,etc.)
- F4.81
- 4.807mm
- SMD1921
- 104×52
- 1/13 or 1/7
- 5408
- 500×250
- 1000×1000×95
- 208 x 208
- 43264dots/m²
- ≥4.8m
- 4500~9000nits
- IP66
- 3,840Hz
- 16bits
- H110°/V:110°
- 590W/m²/630W/m²
- 170W/m²/180W/m²
- AC110V~AC220V 50Hz/60Hz
- -20℃~50℃
- 10%~90%
- 25kg
- Windows (Win7,Win10,etc.)
- F6.25
- 6.25mm
- SMD2727
- 80×40
- 1/5
- 3200
- 500×250
- 1000×1000×95
- 160 x 160
- 25600dots/m²
- ≥6.2m
- 6000~9000nits
- IP66
- 3,840Hz
- 16bits
- H110°/V:110°
- 580W/m²
- 165W/m²
- AC110V~AC220V 50Hz/60Hz
- -20℃~50℃
- 10%~90%
- 25kg
- Windows (Win7,Win10,etc.)
- F7.8
- 7.8125mm
- SMD2727
- 64×32
- 1/4
- 2048
- 500×250
- 1000×1000×95
- 128 x 128
- 16384dots/m²
- ≥7.8m
- 60000~9500nits
- IP66
- 3,840Hz
- 16bits
- H110°/V:110°
- 600W/m²
- 170W/m²
- AC110V~AC220V 50Hz/60Hz
- -20℃~50℃
- 10%~90%
- 25kg
- Windows (Win7,Win10,etc.)
- F10.4
- 10.417mm
- SMD2727
- 48×24
- 1/2
- 1152
- 500×250
- 1000×1000×95
- 256 x 256
- 9216dots/m²
- ≥10m
- 6000~10000nits
- IP66
- 3,840Hz
- 16bits
- H110°/V:110°
- 600W/m²
- 170W/m²
- AC110V~AC220V 50Hz/60Hz
- -20℃~50℃
- 10%~90%
- 25kg
- Windows (Win7,Win10,etc.)
