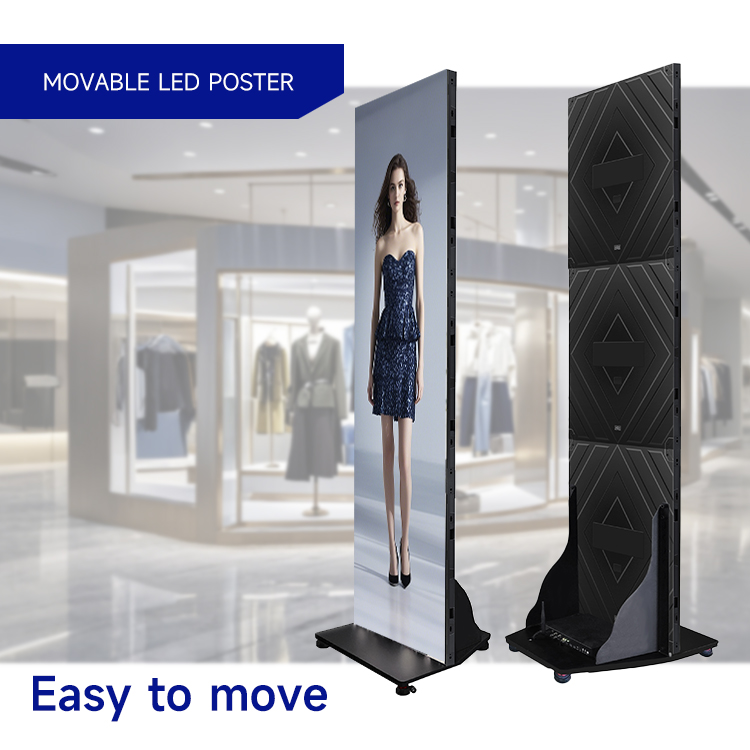

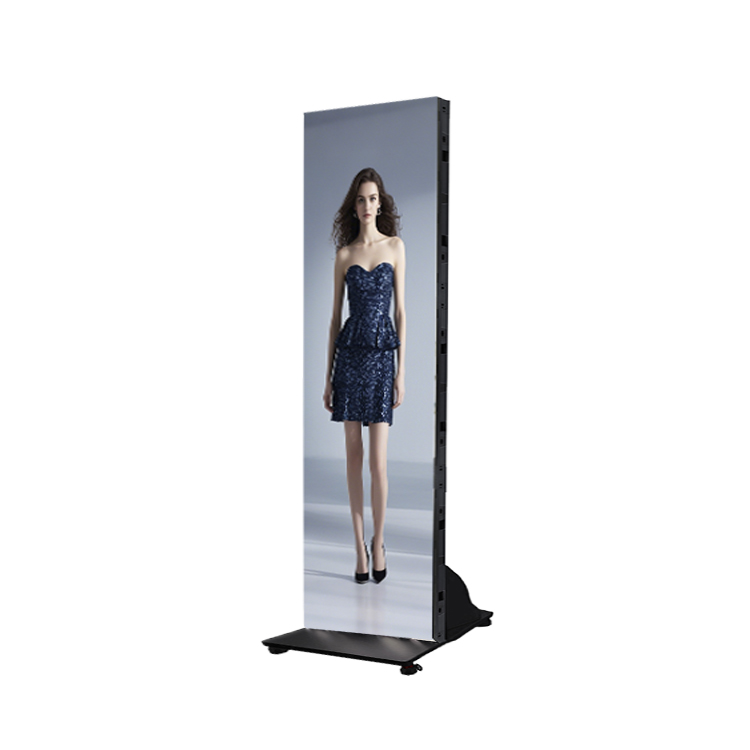

COB Advertising machine in one
COB Advertising machine in one
Pixel pitch：0.9/1.25/1.5mm

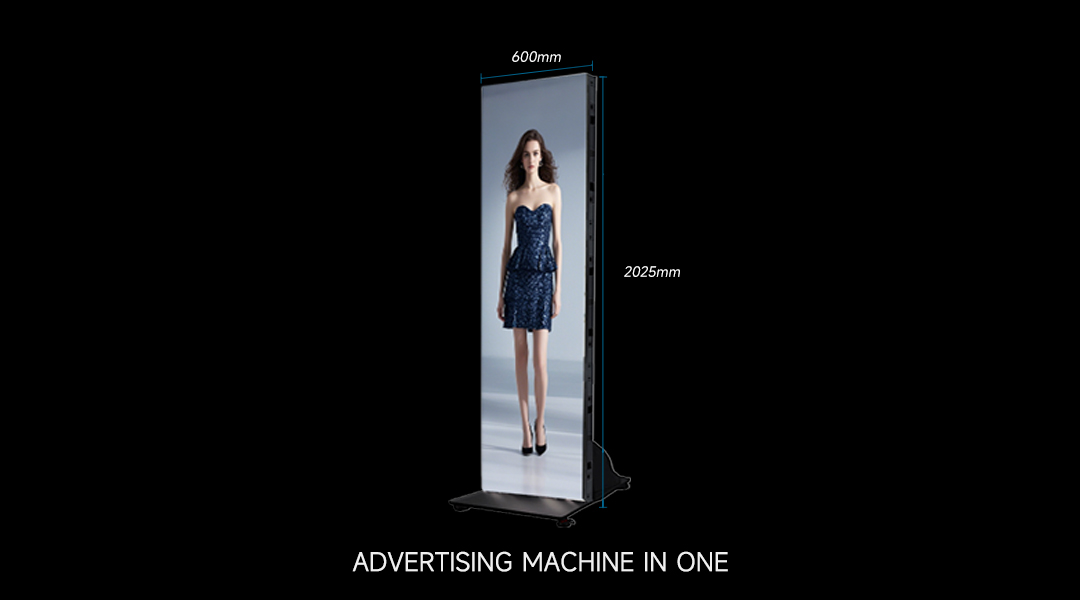

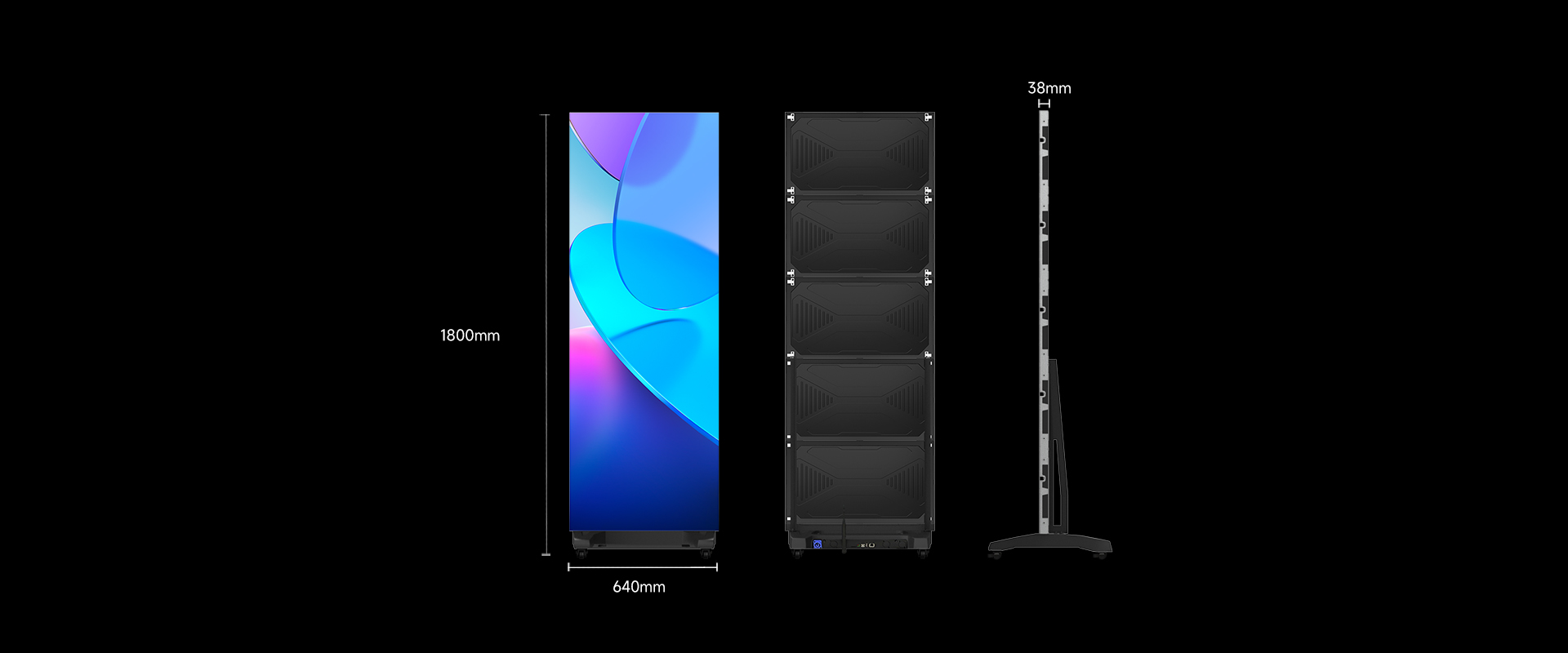

Cabinet size：600x1687.5x38mm
Brightness：600/800nit
Refresh Frequency：≥3840Hz
Main feature
High refresh rate
HDR technology

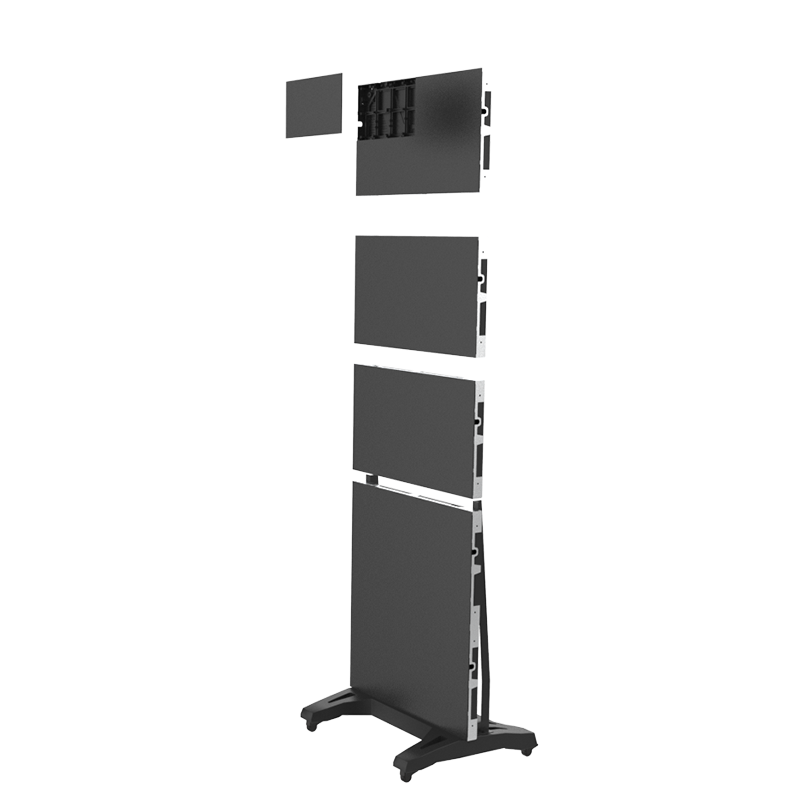

Rapid assembly
Energy conservation

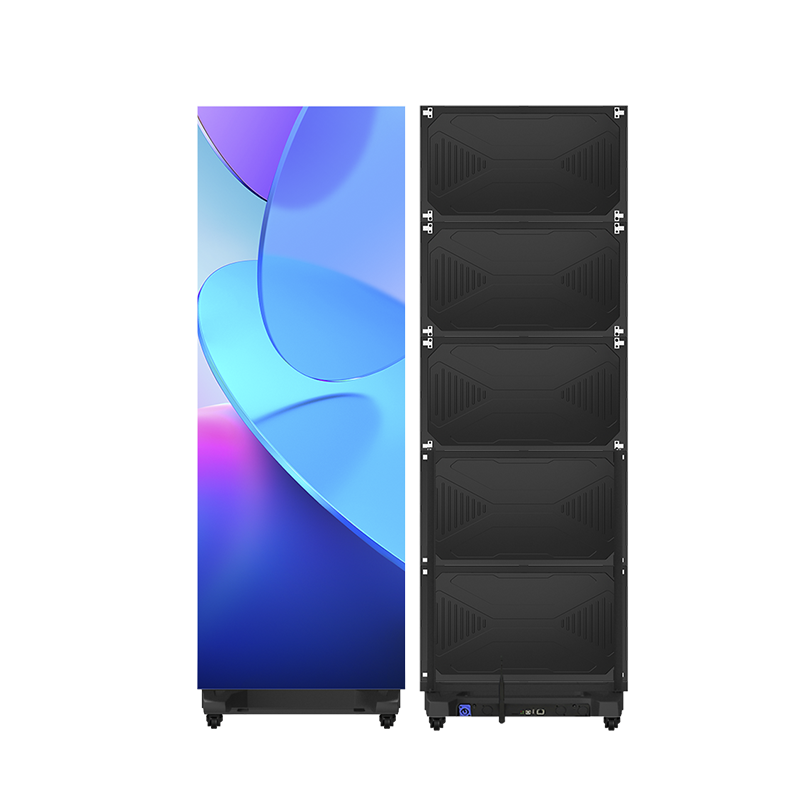

pre-maintenance
Scratch & waterproof

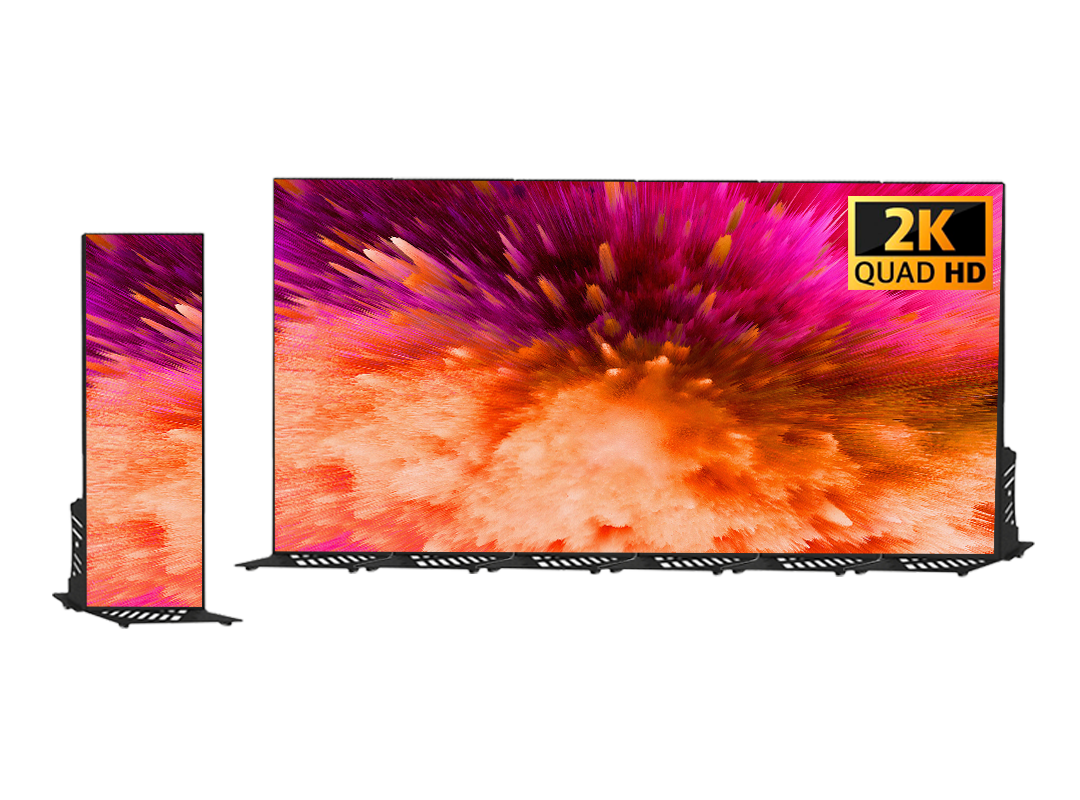

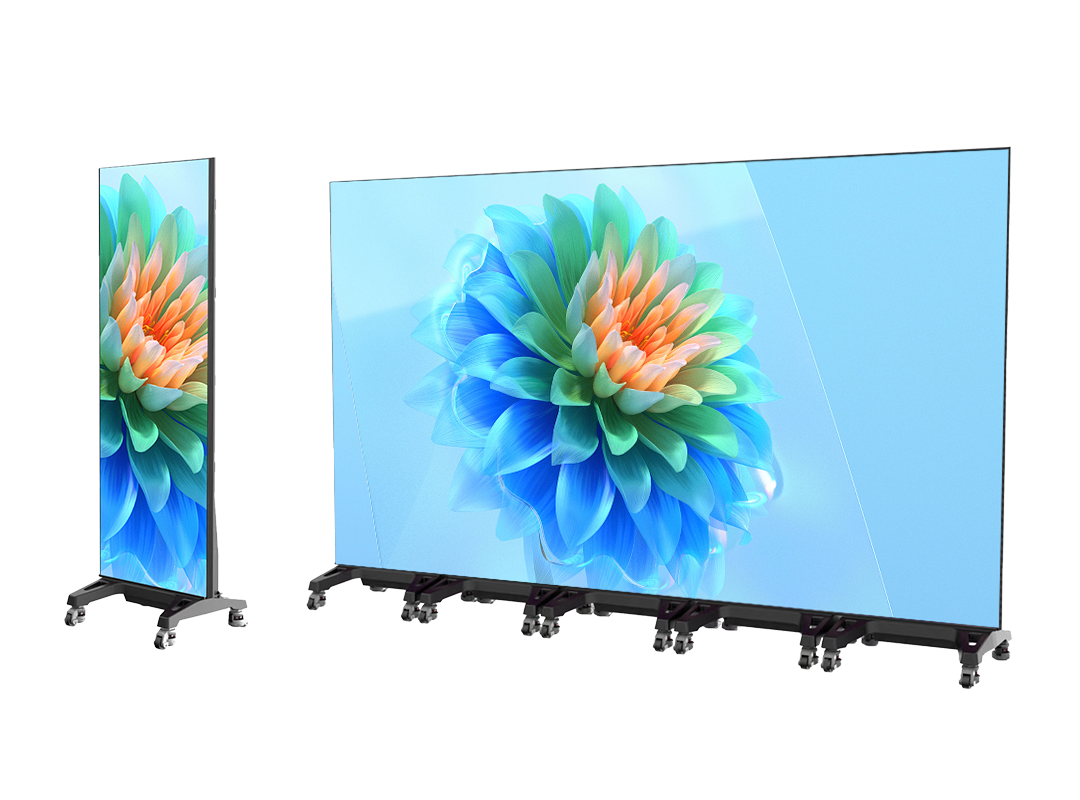

Quick box splicing

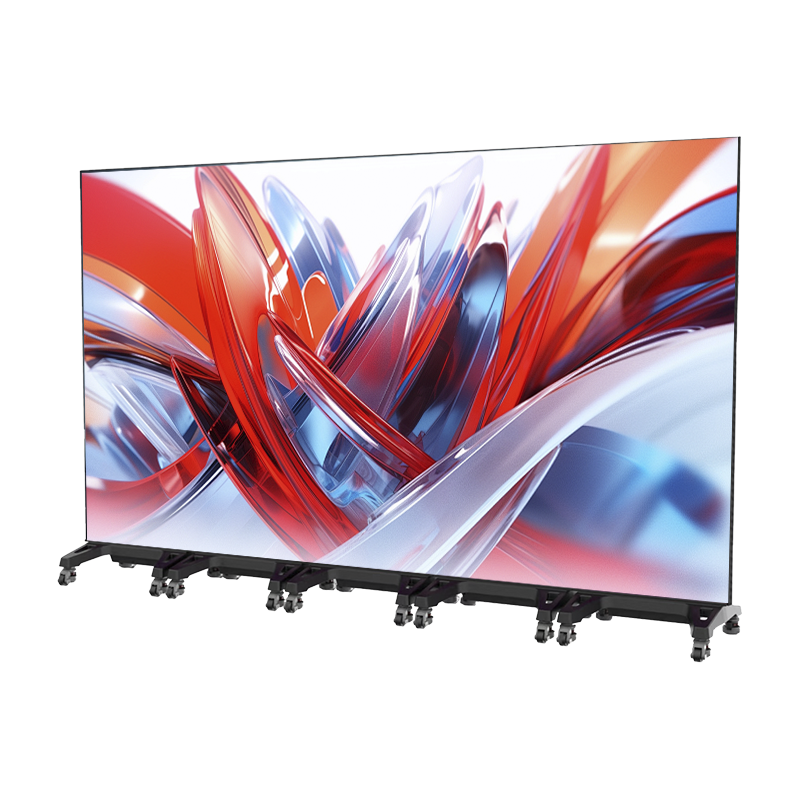

6 COB poster all-in-one machine can quickly splice the standard 2K resolution screen;

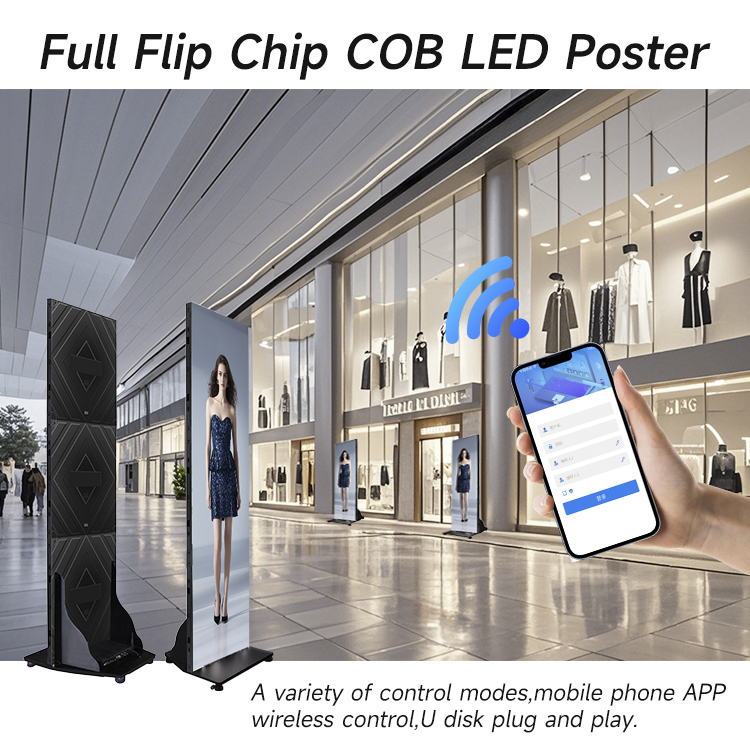

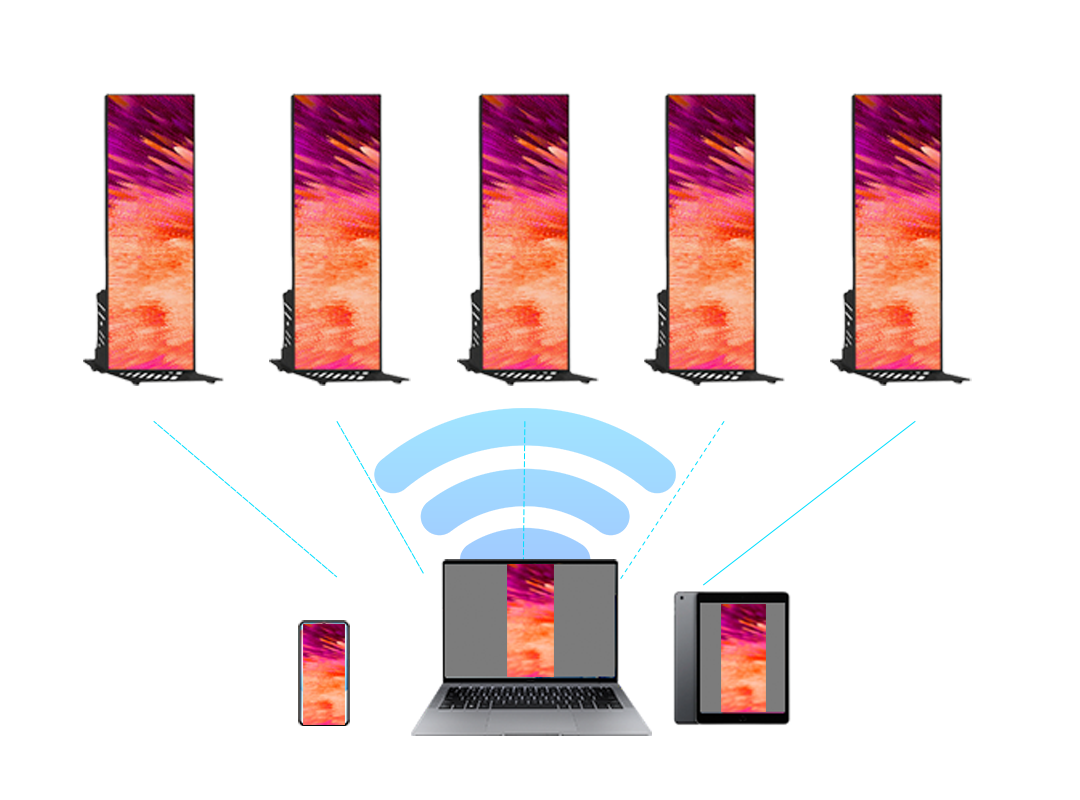

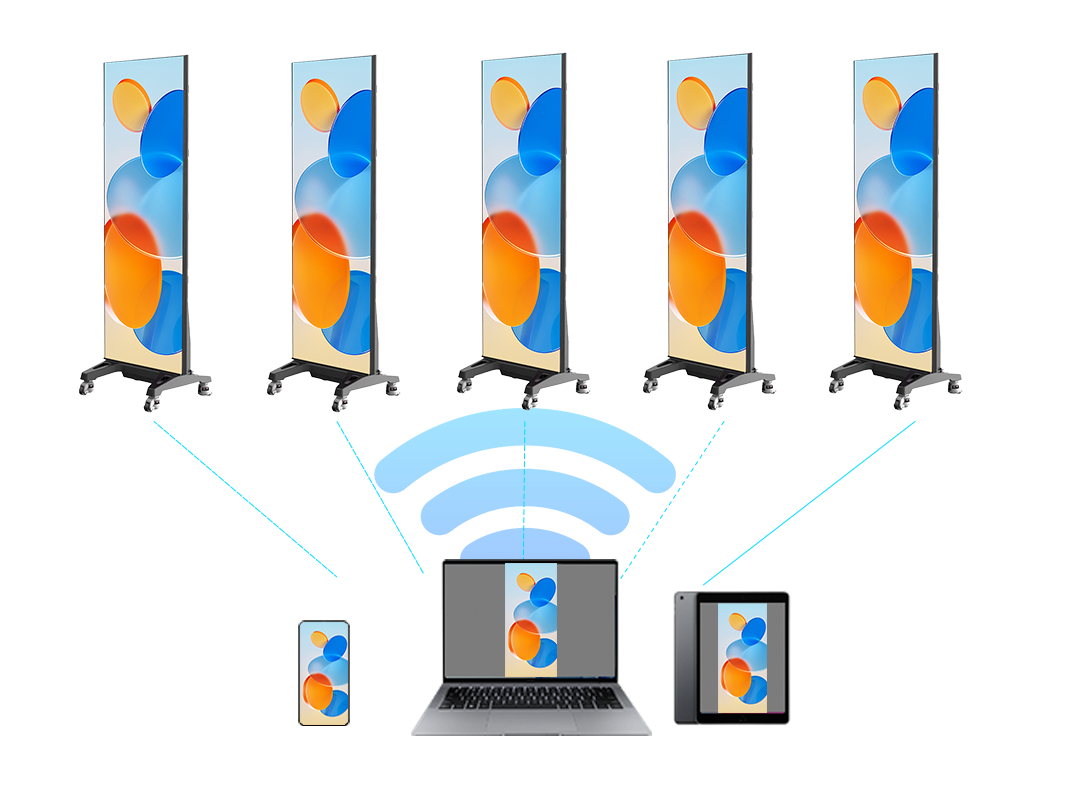

Intelligent cloud control
Remote intelligent monitoring, remote and timing on/off screen;
Mobile phone, computer, tablet remote control;

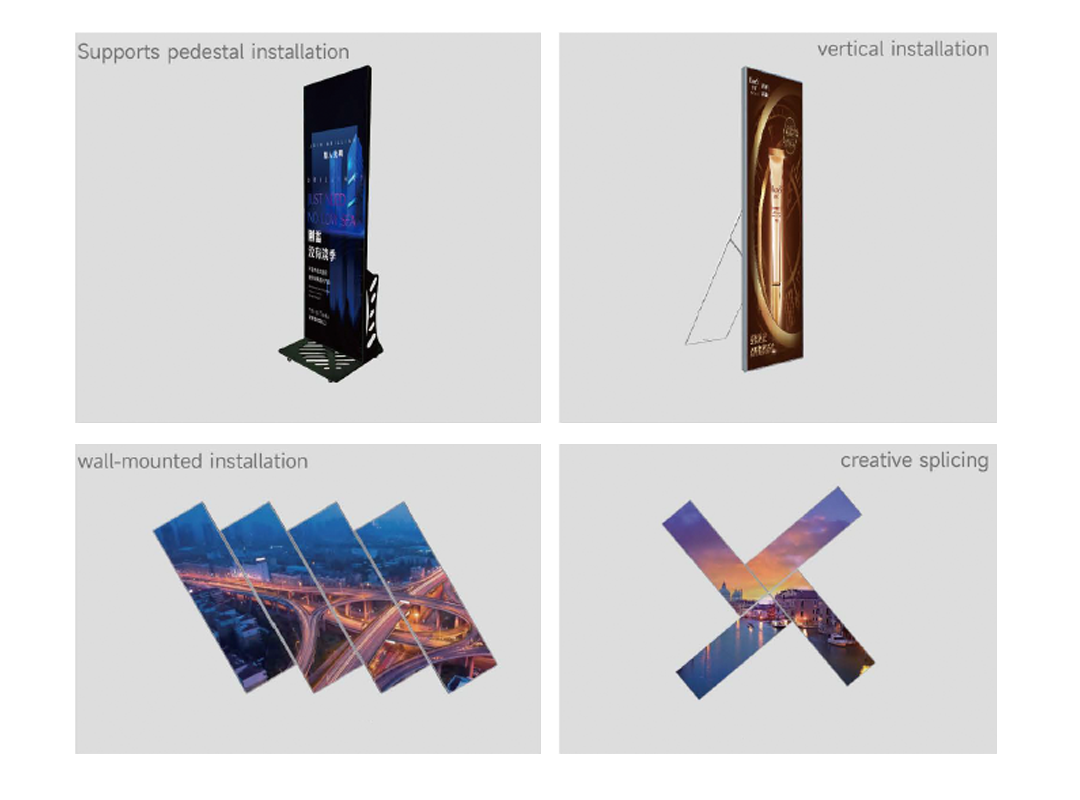

Supports various
installation methods
Support a variety of creative splicing, can be lifted, mounted, fixed;
Parameter
| Title | 0.9 | 1.2 | 1.5 |
|---|---|---|---|
| Pixel Pitch(mm) | 0.9375 | 1.25 | 1.5 |
| Pixel Density | 1137778 | 640000 | 409600 |
| Cabinet Dimension | 600x1687.5x38mm | 600x1687.5x38mm | 600x1687.5x38mm |
| Cabinet Resolution | 640x1800 | 480x1350 | 384x1080 |
| Module Dimension | 150x168.75mm | 300x168.75mm | 300x168.75mm |
| Built‑in Speaker | 2x5W | 2x5W | 2x5W |
| Controller | TB60/TB50/TB40/TB10PLUS | TB60/TB50/TB40/TB10PLUS | TB60/TB50/TB40/TB10PLUS |
| Viewing Angle | H160°/V160° | H160°/V160° | H160°/V160° |
| Brightness | 600(Standard) 800（Optional） | 600(Standard) 800（Optional） | 600(Standard) 800（Optional） |
| Contrast Ratio | ≥5000：1 | ≥5000：1 | ≥5000：1 |
| Color Temperature | 3000~10000K(Adjustable) | 3000~10000K(Adjustable) | 3000~10000K(Adjustable) |
| Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| Grayscale | ≥13bit | ≥13bit | ≥13bit |
| Operating Power Source | AC100~240V | AC100~240V | AC100~240V |
| Frame Rate | 50/60Hz | 50/60Hz | 50/60Hz |
| Avg.Power Consumption | 80W/㎡ | 893W/㎡ | 91W/㎡ |
| Max.Power Consumption | 240W/㎡ | 280W/㎡ | 275W/㎡ |
| Operating Temp | -20℃~+40℃ | -20℃~+40℃ | -20℃~+40℃ |
| Operating Humidity | 10%RH‑90%RH | 10%RH‑90%RH | 10%RH‑90%RH |
| Storage Temperature | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Storage Humidity | 10%RH‑90%RH | 10%RH‑90%RH | 10%RH‑90%RH |
| Life Span | 100,000h | 100,000h | 100,000h |
| NTSC Color Gamut | NTSC≥105%,DCI‑P3≥95% | NTSC≥105%,DCI‑P3≥95% | NTSC≥105%,DCI‑P3≥95% |
| Defective Pixel Rate | ≤0.03% | ≤0.03% | ≤0.03% |
