A massive curved screen measuring 15 cabinets wide and 7 cabinets high has quietly debuted in a provincial-level project, showcasing the latest achievements in modern display technology.

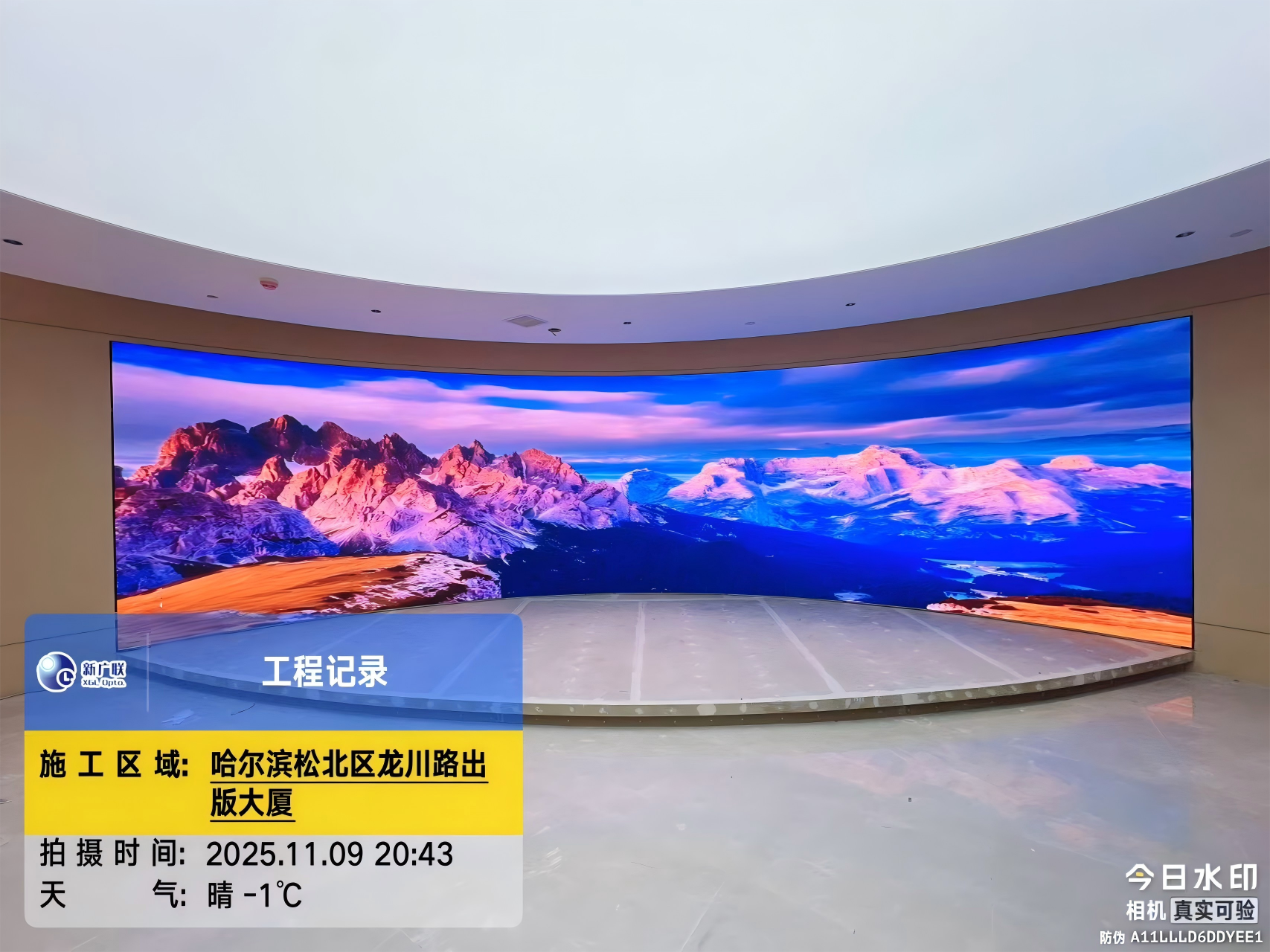

Recently, a Novalink P1.25 fine-pitch curved LED display utilizing advanced COB flip-chip technology has been successfully installed and put into operation in a certain province.

This display features a curved design composed of 15 cabinets in width and 7 cabinets in height, with individual cabinet dimensions of 600*337.5mm. The total area exceeds 21 square meters, offering a全新的 solution for the high-end indoor display market.

01 Technical Core: COB Flip-Chip & Fine-Pitch Technology

The Novalink curved LED display adopts full flip-chip RGB LED COB technology, with a precise pixel pitch of 1.25 millimeters, classified as P1.25 level.

This technical specification represents a leading position in the current high-end indoor display field.

Unlike traditional SMD packaging, COB (Chip-on-Board) packaging technology directly mounts LED chips onto the PCB, eliminating multiple processes such as lamp bead packaging, high-temperature reflow soldering, and mounting.

This technical approach significantly enhances the display's stability and reliability.

The full flip-chip COB common cathode cooling technology enables effective control of power consumption and heat generation. The screen temperature can be maintained between 45°C-49°C, avoiding brightness attenuation caused by excessive heat and significantly extending the display's operational lifespan.

02 Exceptional Performance: Comprehensive Enhancement of Visual Experience

The P1.25 fine-pitch design provides this display with a high pixel density of 640,000 pixels per square meter, ensuring exquisite image detail and clarity.

Whether displaying text, images, or video content, it can present seamless, complete pictures, delivering an immersive visual experience for users.

In terms of color performance, this display achieves 110% NTSC color gamut coverage, with authentic and vibrant color reproduction.

A high refresh rate of 3840Hz completely eliminates water ripple patterns, ensuring smooth and stable playback even with high dynamic video content.

A high contrast ratio of 1,000,000:1 delivers purer blacks and stronger image layering. The ultra-wide 178° viewing angle ensures consistent visual effects from different viewing positions.

03 Curved Design: Innovative Application in Installation Structure

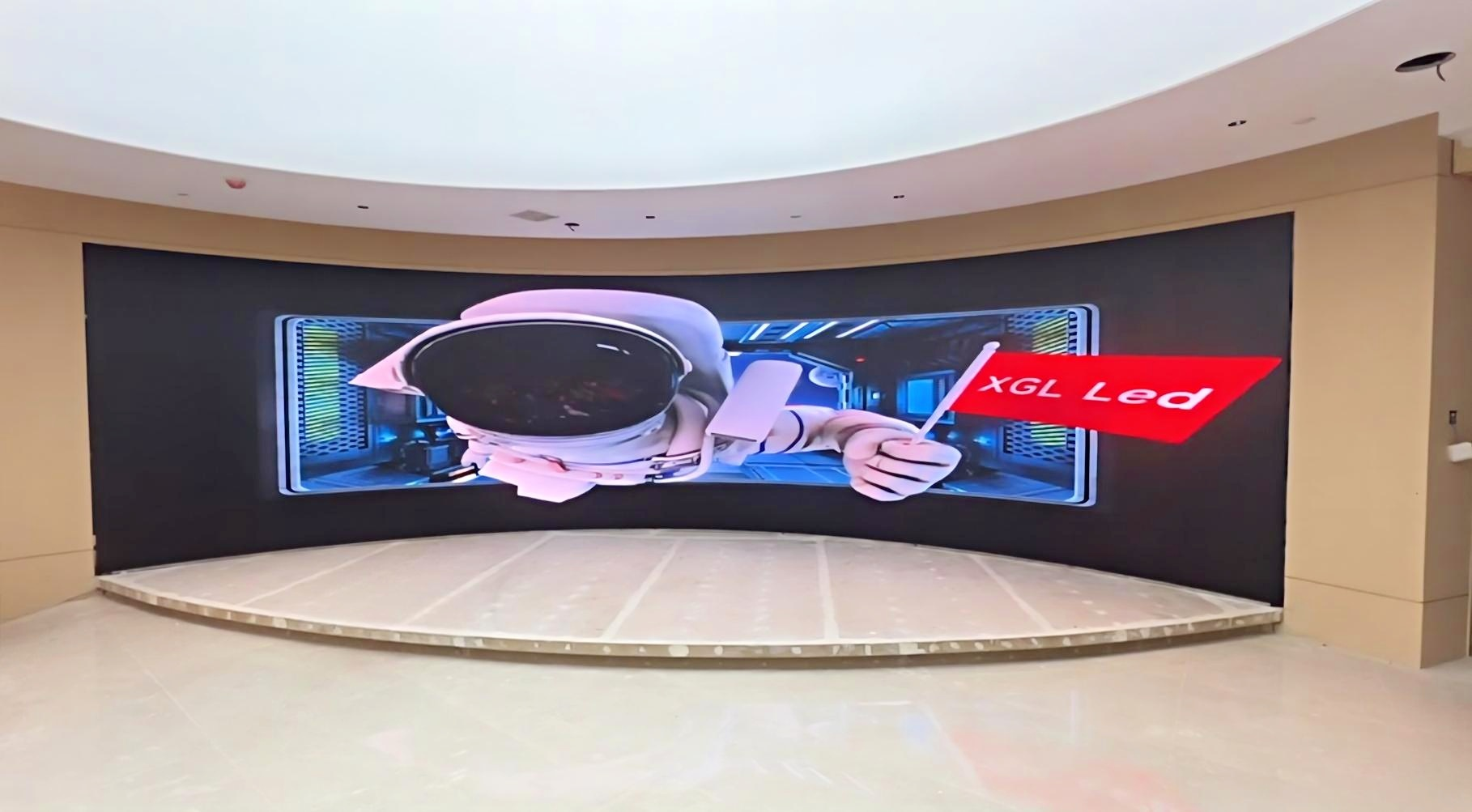

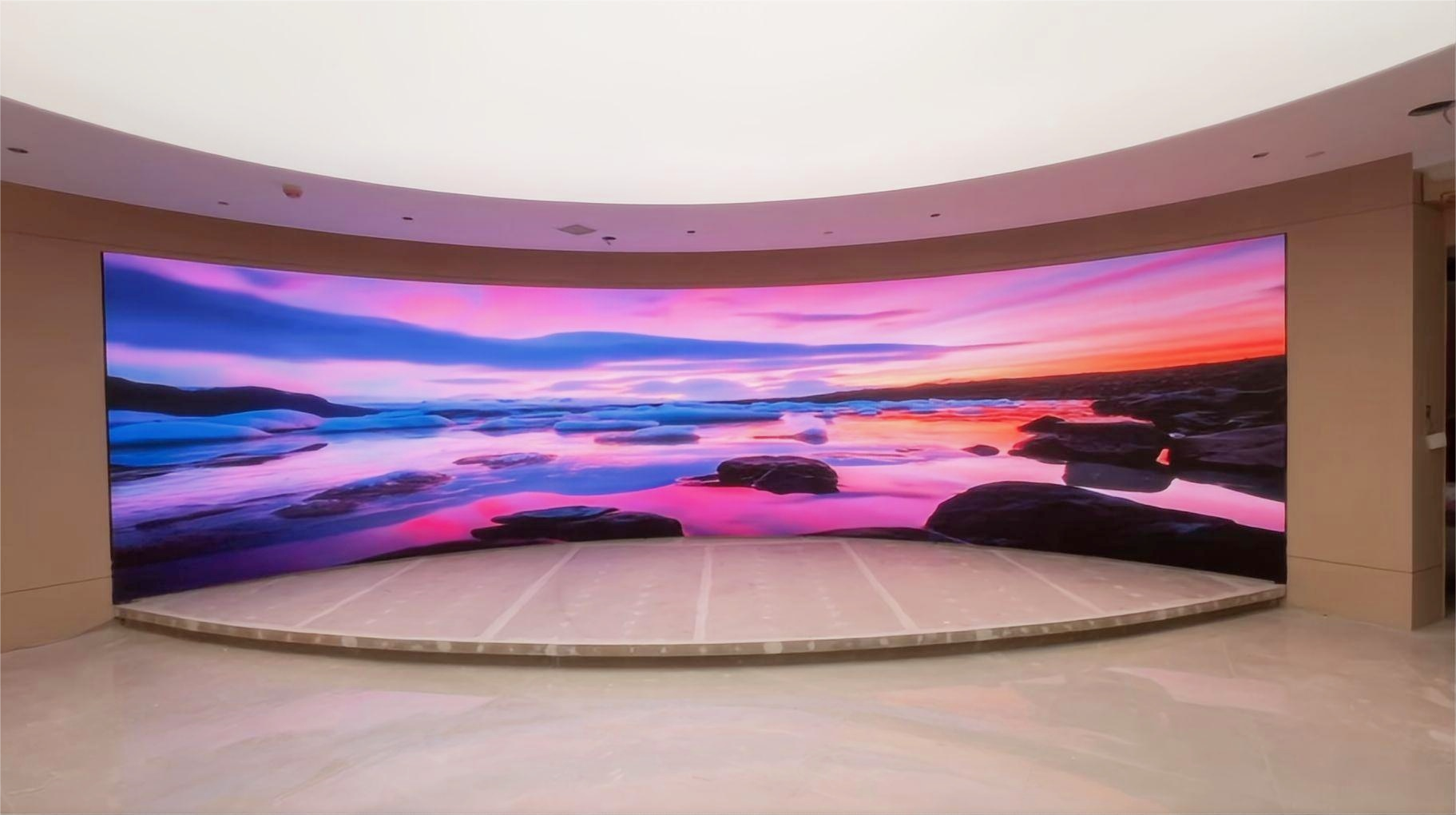

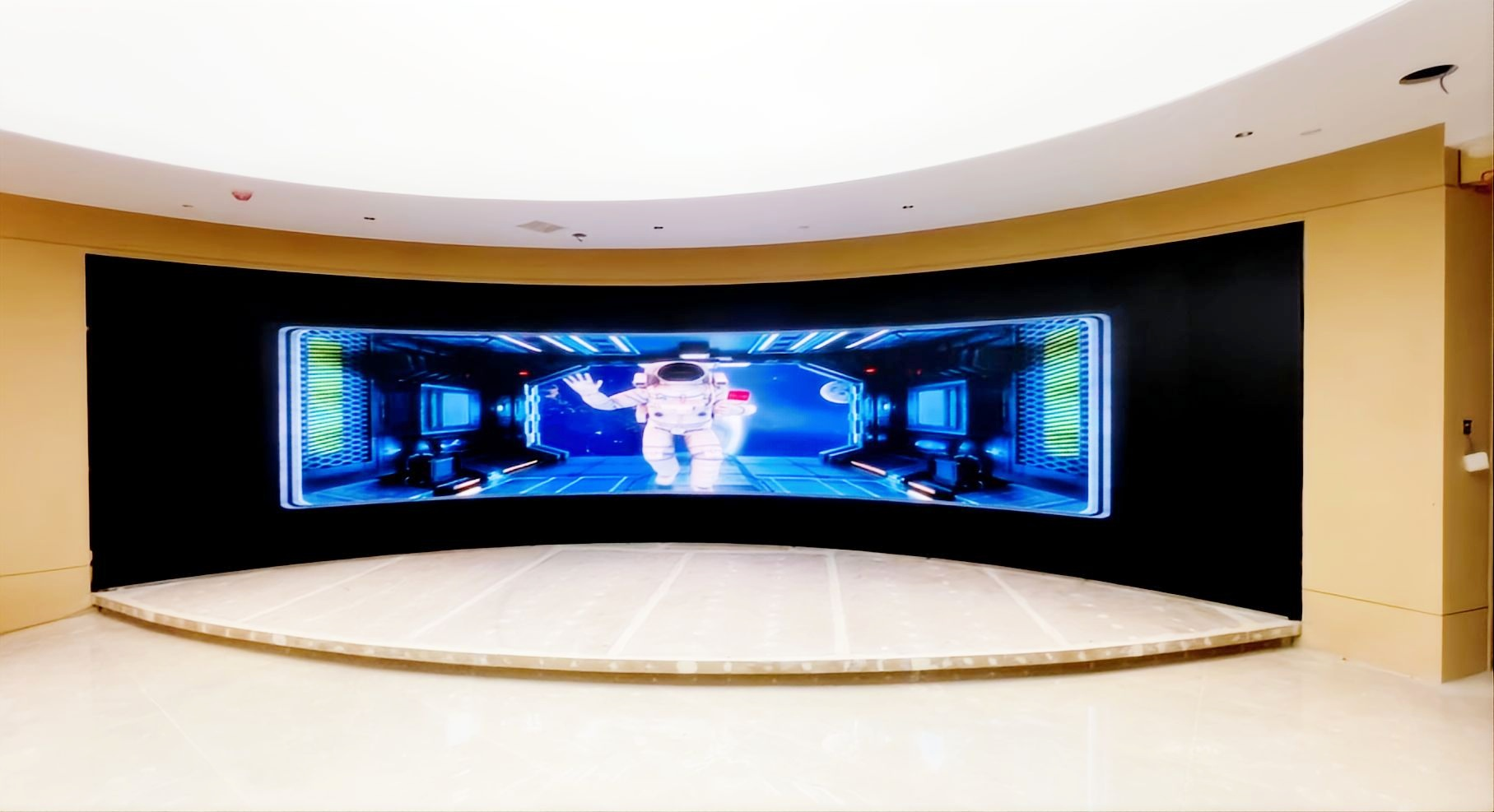

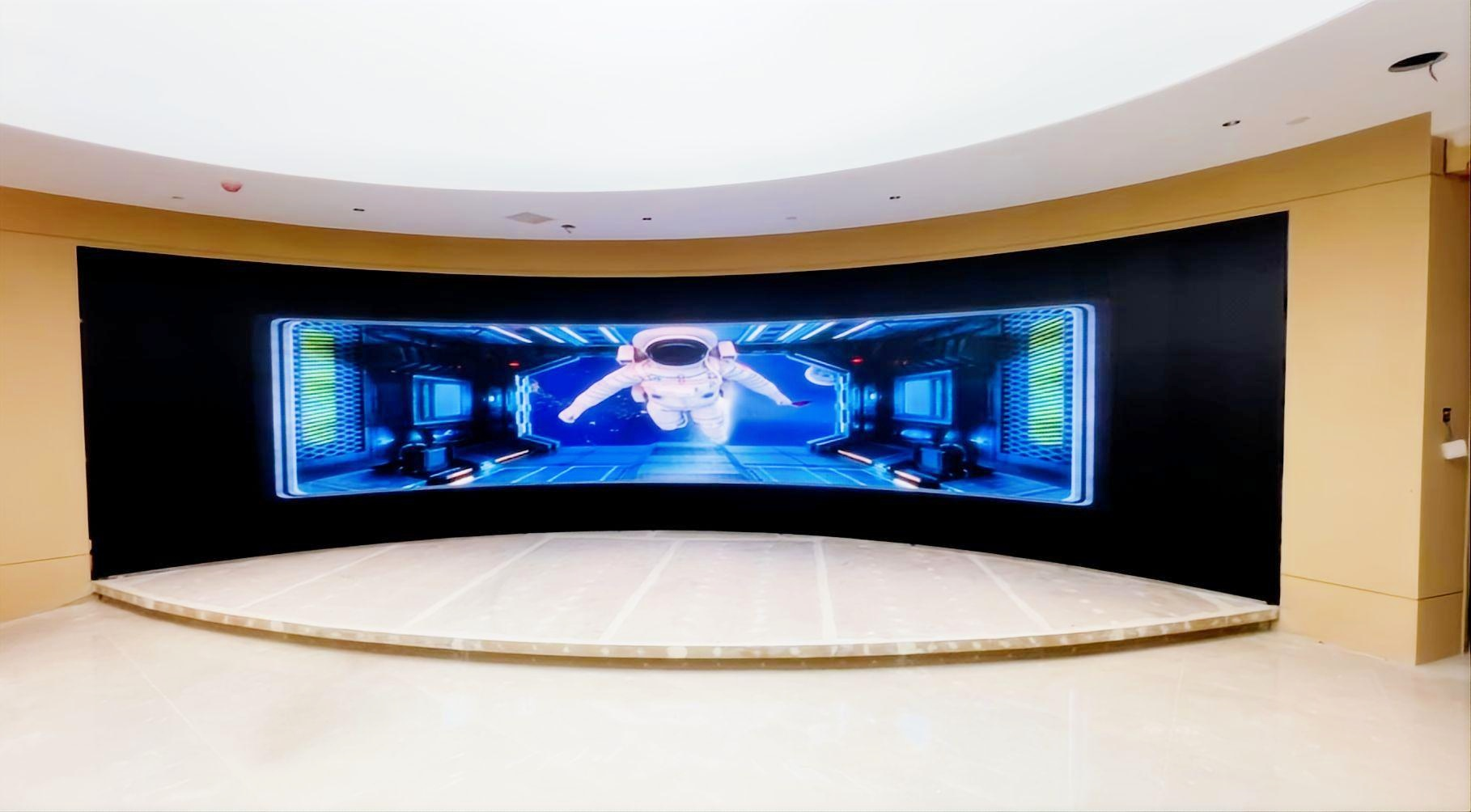

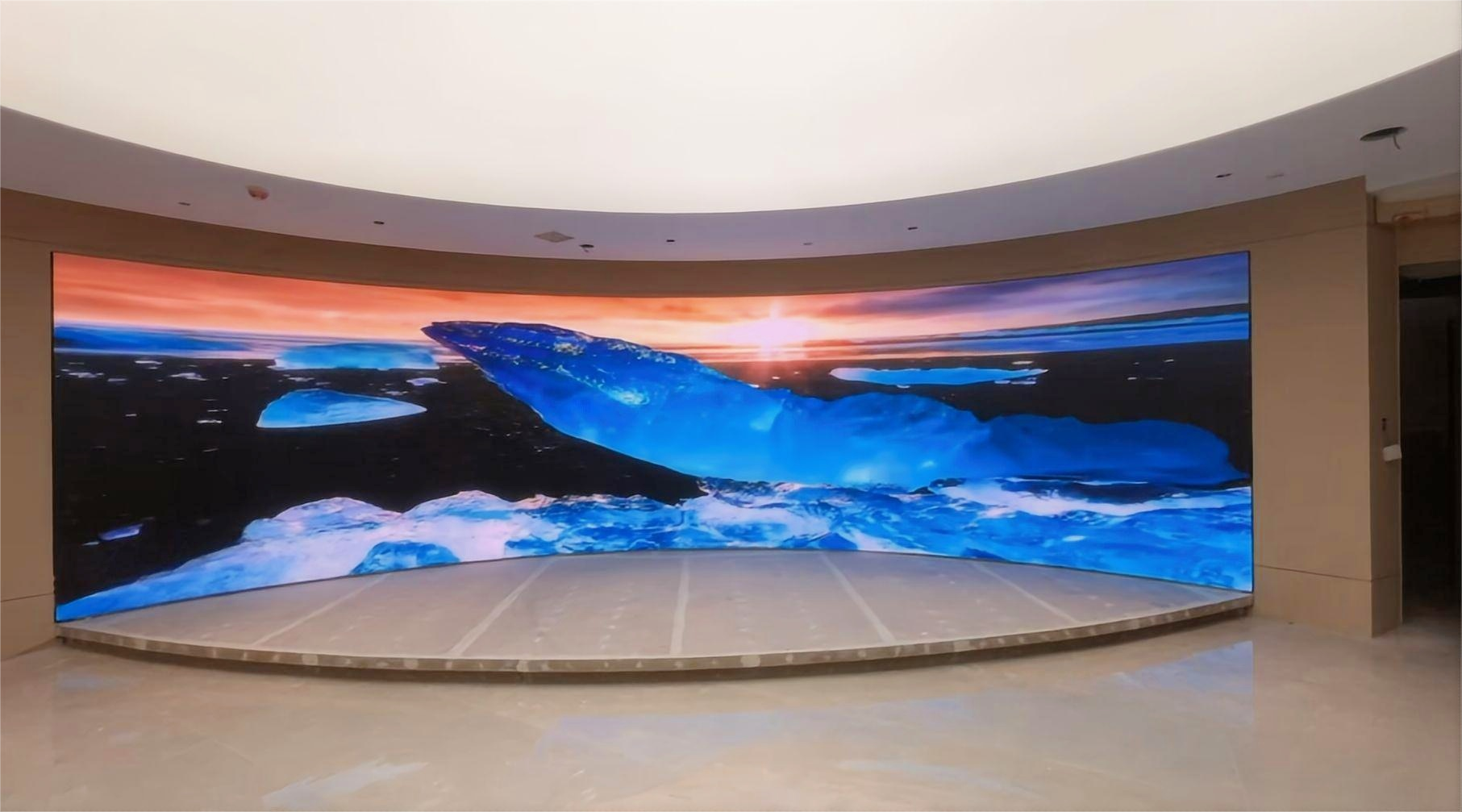

A highlight of this project is its curved structure design of 15 cabinets wide × 7 cabinets high.

Each cabinet measures 600*337.5mm, designed according to the 16:9 golden ratio, allowing for seamless splicing in any 16:9 large screen configuration.

The curved design not only enhances visual immersion but also provides superior viewing angle coverage in practical application scenarios.

This design is particularly suitable for command and dispatch centers, corporate exhibition halls, and other occasions requiring a strong sense of visual enclosure, making the display a core carrier for information transmission and decision support.

The cabinets utilize high-quality materials and precise manufacturing processes, with flatness controlled within ≤0.15mm, ensuring the integrity and aesthetics of the curved splicing.

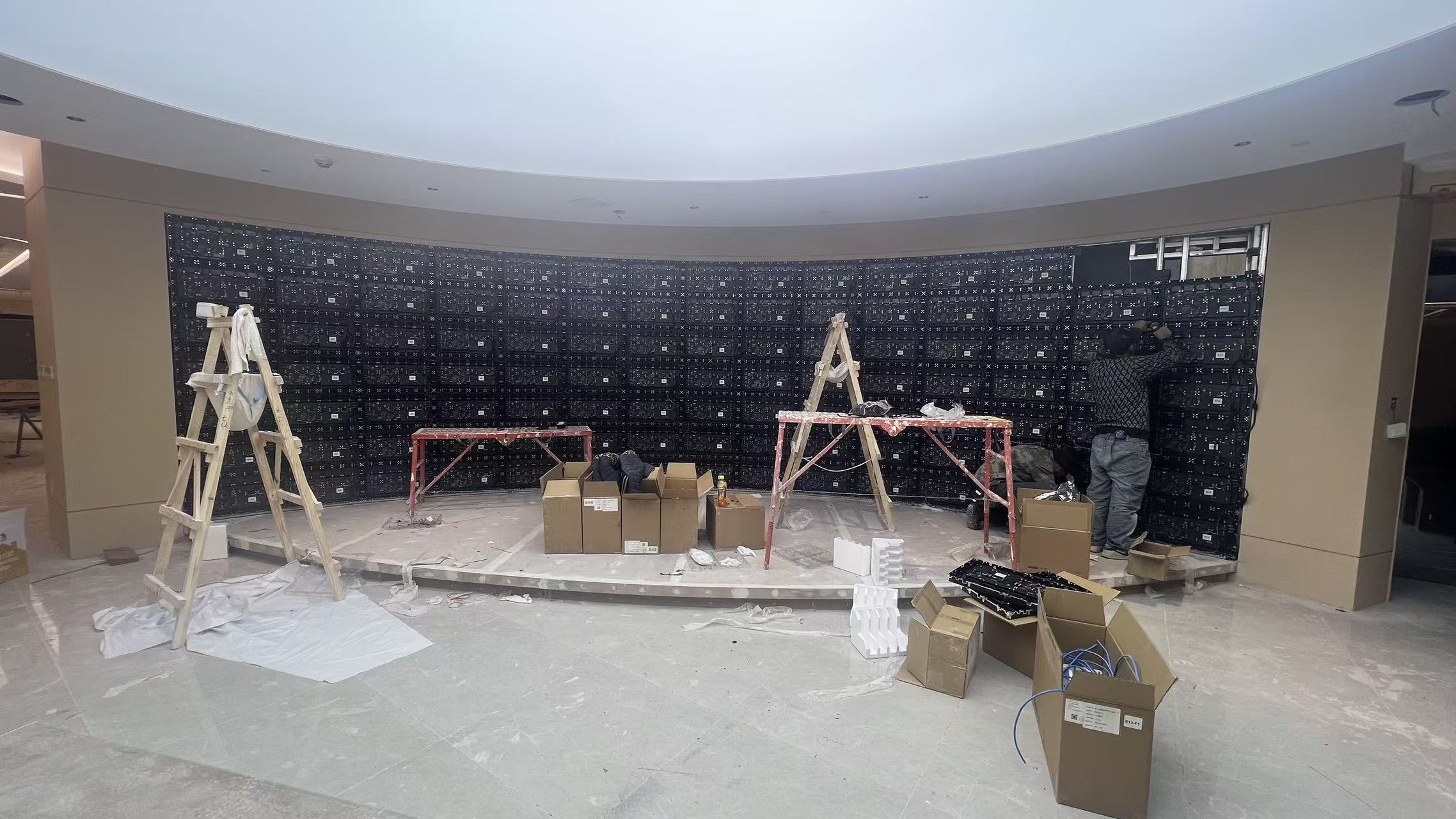

A special frame structure design allows micro-adjustments (up/down, left/right, forward/backward) for each display unit, guaranteeing seamless connections between spliced modules.

04 Application Scenarios: Versatile Adaptation for High-End Indoor Displays

This P1.25 COB fine-pitch curved display, with its exceptional performance characteristics, is particularly suited for high-end indoor environments demanding extreme clarity.

In command and dispatch centers, it can clearly present big data visualization information, helping decision-makers quickly and accurately grasp the overall situation.

For corporate exhibition halls and image display scenarios, this screen can seamlessly showcase corporate culture and product images, supporting the intelligent display of various media information including pictures, videos, and text.

In the fields of broadcasting, studio production, and conference education, its high refresh rate and high contrast ratio ensure image stability and detail rendering, providing a high-quality display platform for program production and teaching training.

The successful implementation of this curved display project demonstrates Novalink's technical strength in the high-end display field and sets a new benchmark for large-screen display applications across various industries.

Competition in the curved display market is shifting from "competing on price" to "competing on technology." COB flip-chip technology represents the future development direction.

The successful installation of Novalink's P1.25 curved display in a certain province sets a new benchmark for high-end indoor displays.

Display technology knows no bounds.

With the continuous advancement of micro fine-pitch LED technology, we will witness more innovative display solutions emerging across various fields.
